750-885/025-000 WAGO 750 Series Programmable Logic Controller (PLC) CPU Unit w/ Safe Media Redundancy + Extended Temperature Range - Gen.3

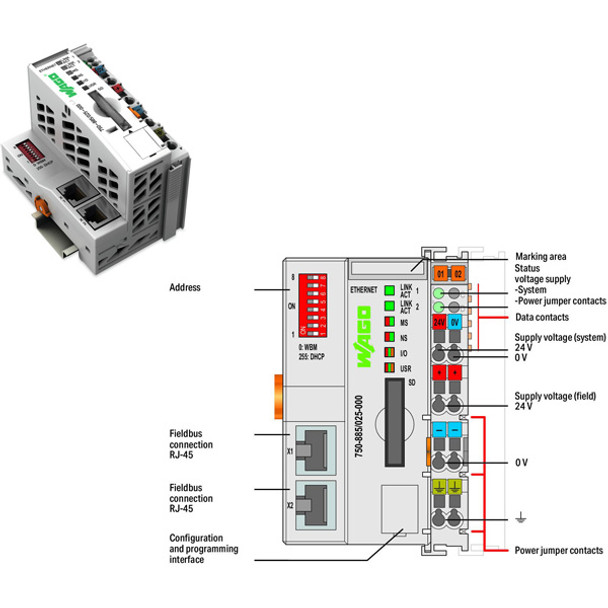

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Programmable Logic Controller (PLC) CPU unit with safe media redundancy + extended temperature range, Gen.3, Controller ETHERNET; G3; SD; MR; T, 32-bit processor, 250 x connections per node + 64 x field devices connection capability, with Modbus TCP + Ethernet/IP communication capability, supply voltage 18-31.2Vdc via wiring (24Vdc nom.), with 2 x RJ45 connectors (fieldbus), DIN-35 rail mounting (61.5mm width), with SD and SDHC card slot (up to 32GB), IP20, rated for -20°C...+60°C ambient, equivalent to 750885025000.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Controllers
  • Product Type: Programmable Controllers
  • Ambient air temperature for operation: -20°C...+60°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Communication protocol: Modbus TCP|Ethernet/IP
  • Connection capacity: 250 x connections per node|64 x field devices
  • Connection type (electrical) (filter / rank = 0005030): RJ-45 connector|Terminals (Cage-clamp)
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W61.5mm x D71.9mm
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Net Width (mm): 61.5mm
  • Processor type: 32-bit processor
  • Product replaced by: 750-8101/025-000|750-8102/025-000|750-8210/025-000|750-8212/025-000|750-8216/025-000
  • Speed: 10Mbit/s|100Mbit/s
  • Storage type: SD and SDHC card slot (up to 32GB)
  • Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)
  • Supply voltage (DC): 24Vdc
  • Connection type (electrical): RJ-45 connector|Terminals (Cage-clamp)

750-885/025-000
