750-8216/025-000 WAGO 750 Series Programmable Logic Controller (PLC) CPU Unit w/ Extended Temperature Range

Image may represent a range of products. Product may vary based on listed specifications.

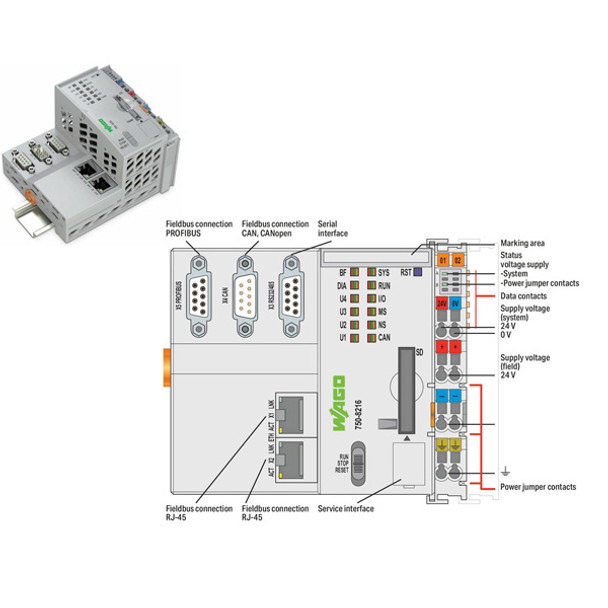

WAGO 750 Series Programmable Logic Controller (PLC) CPU unit with extended temperature range, PFC200; G2; 2ETH RS CAN DPS; T, Cortex A8 1GHz processor, with 512MB memory (RAM) + 4GB internal memory (flash), 250 x connections per node + 64 x field devices connection capability, with Modbus RTU + Modbus TCP + Ethernet/IP + CANopen + PROFIBUS + RS-232 + RS-485 communication capability, supply voltage 18-31.2Vdc via wiring (24Vdc nom.), with 2 x RJ45 connectors (fieldbus) + 3 x 9-pin D-sub connectors + cage-clamp 2-pin (system), DIN-35 rail mounting (112mm width), with SD and SDHC card slot (up to 32GB), IP20, rated for -20°C...+60°C ambient, replaces obsolete component(s) 750-8203/025-000 / 750-8206/025-000 / 750-885/025-000 / 750-8204/025-000, equivalent to 7508216025000.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Controllers
  • Product Type: Programmable Controllers
  • Ambient air temperature for operation: -20°C...+60°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): -20 | +60 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|DNV-CG-0339,Aug.2021
  • Baud rate (communication/fieldbus 1): 10/100 Mbit/s
  • CPU: Cortex A8; 1 GHz
  • Communication protocol: Modbus RTU|Modbus TCP|Ethernet/IP|CANopen|PROFIBUS|RS-232|RS-485
  • Conformity marking: CE
  • Connection capacity: 250 x connections per node|64 x field devices
  • Connection type (electrical) (filter / rank = 0005030): RJ-45 connector|D-Sub connector|Terminals (Cage-clamp)
  • Current carrying capacity (power jumper contacts): 10A
  • Data memory: CODESYS V2: 64 MB; e!RUNTIME: 128 MB
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 71.9 mm / 2.831 inches
  • Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W112mm x D71.9mm
  • ETHERNET protocols: DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 2.855MJ
  • General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 61010-2-201
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input and output process image (CAN) max.: 2000 words/2000 words
  • Input and output process image (Modbus) max.: CODESYS V2: 1000 words/1000 words; e!RUNTIME: 32000 words/32000 words
  • Input and output process image (internal) max.: 1000 words/1000 words
  • Input current (typ.) at nominal load (24 V): 550mA
  • Internal memory (flash): 4096MB
  • Isolation: 500 V system/field
  • Main memory (RAM): 512MB
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Memory card slot: Push-push mechanism; Cover lid (sealable)
  • Mounting mode: DIN rail
  • Mounting position: any
  • Net Width (mm): 112mm
  • Non-volatile hardware memory: 128Kbytes
  • Non-volatile software memory: 128.Kbytes
  • Number of modules per node (max.): 250
  • Number of modules without a bus extension (max.): 64
  • Number of outgoing power jumper contacts: 3
  • Operating System (OS): Real-time Linux (with RT-Preempt patch)
  • Operating system: Real-time Linux (with RT-Preempt patch)
  • Pollution degree (5): 2 per IEC 61131-2
  • Processor type: Cortex A8 1GHz processor
  • Program memory: CODESYS V2: 16 MB; e!RUNTIME: 32 MB
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Replaces: 750-8203/025-000|750-8206/025-000|750-885/025-000|750-8204/025-000
  • Shock resistance: 15g per IEC 60068-2-27
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Speed: 10Mbit/s|100Mbit/s
  • Storage type: SD and SDHC card slot (up to 32GB)
  • Sub-range name: PFC200 series
  • Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)
  • Supply voltage (DC): 24Vdc
  • Surrounding air temperature (storage): -40 | +85 °C
  • Total current (system supply): 1,700mA
  • Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card)
  • Vibration resistance: 4g per IEC 60068-2-6
  • Visualization: Web-Visu|Web Visu
  • Weight: 264.2g
  • Width: 112 mm / 4.409 inches
  • Connection type (electrical): RJ-45 connector|D-Sub connector|Terminals (Cage-clamp)
