Edwards Signaling E-FSC Series Conventional Fire Alarm Control Panels

Edwards Signaling E-FSC Series fire alarm family consists of 3, 5 and 10 zone conventional fire alarm control panels, an integrated DACT/Dialer, serial annunciator modules, and serial remote relay modules. All of these components are microprocessor-controlled. The E-FSC Series family is ideal for both new and retrofit installations alike. E-FSC Series incorporates features designed to simplify installation, operation and maintenance. These include front panel programming, one person walk testing, and selectable IDC and NAC types. Kidde E-FSC Series panels are powerful enough to meet the demands of today's installations while leaving plenty of room to grow in the future. E-FSC502 and E-FSC1004 panels support Class A operation by combining pairs of on-board IDCs or NACs to provide the necessary Class A circuits. For example, the E-FSC1004 comes factory set to support 10 Class B IDCs and four NACs. But it can be field-configured to provide five Class A IDCs, no Class B IDCs, and two Class A NACs - or any other combination of circuits that fall within the circuit-pairing parameters.

E-FSC Series

18 items

  • Product
  • Qty in Cart
  • Quantity
  • Price
  • Subtotal
  • Picture Not Available
    FSRRM

    Edwards Signaling

    Product Type: Modules

    FSRRM Edwards Signaling E-FSC Series Relay Module, Five Form C relays, 1A/each, configurable as zone or common system mode.
    Qty in Cart: 0
    Price:
    Subtotal:
  • Edwards MFC-A
    MFC-A

    Edwards Signaling

    Product Type: Cabinets

    MFC-A Edwards Signaling E-FSC Series Multi-function Cabinet, fire alarm accessory enclosure.
    Qty in Cart: 0
    Price:
    Subtotal:
  • Kidde expander transformer
    F-XTR120

    Edwards Signaling

    Product Type: Transformers

    F-XTR120 Edwards Signaling E-FSC Series Expander Transformer, 120VAC, for E-FSC1004 only.
    Qty in Cart: 0
    Price:
    Subtotal:

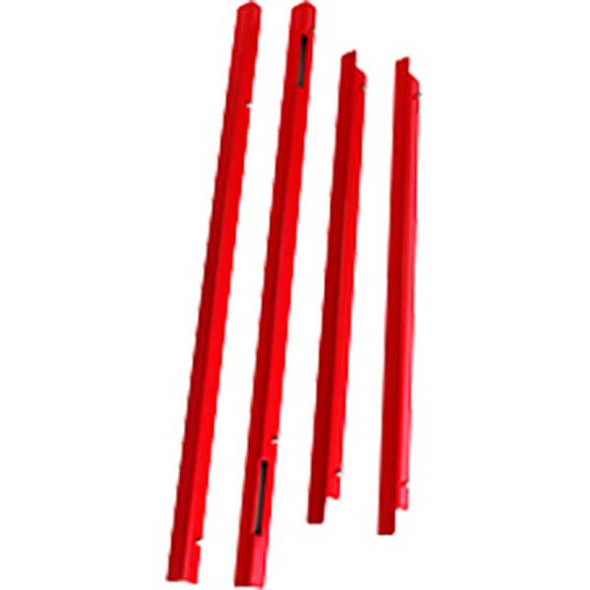

  • Kidde semi flush trim ring 2
    F-TRIM35R

    Edwards Signaling

    Product Type: Trim Rings

    F-TRIM35R Edwards Signaling E-FSC Series Semi-flush Trim Ring for E-FSC302 and E-FSC502, red.
    Qty in Cart: 0
    Price:
    Subtotal:
  • Edwards F-TRIM35G
    F-TRIM35G

    Edwards Signaling

    Product Type: Trim Rings

    F-TRIM35G Edwards Signaling E-FSC Series Semi-flush Trim Ring for E-FSC302 and E-FSC502, gray.
    Qty in Cart: 0
    Price:
    Subtotal:
  • Kidde semi flush trim ring.png
    F-TRIM10R

    Edwards Signaling

    Product Type: Trim Rings

    F-TRIM10R Edwards Signaling E-FSC Series Semi-flush Trim Ring for E-FSC1004, red.
    Qty in Cart: 0
    Price:
    Subtotal:
  • Edwards F-TRIM10G
    F-TRIM10G

    Edwards Signaling

    Product Type: Trim Rings

    F-TRIM10G Edwards Signaling E-FSC Series Semi-flush Trim Ring for E-FSC1004, gray.
    Qty in Cart: 0
    Price:
    Subtotal:
  • Kidde universal interface module
    FSUIM

    Edwards Signaling

    Product Type: Modules

    FSUIM Edwards Signaling E-FSC Series Universal Input Module, 30VDC 1A contact rating.
    Qty in Cart: 0
    Price:
    Subtotal:
