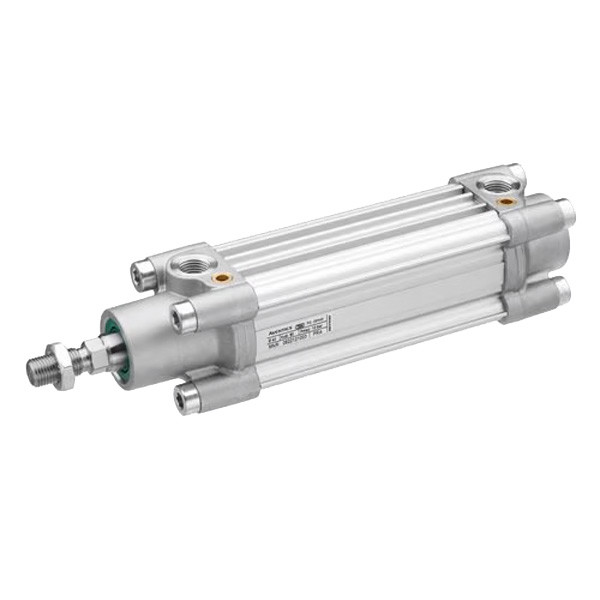

R480147052 Aventics PRA Series Profile Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics PRA Series Profile Cylinder, ISO 15552, 80 mm Piston Diameter, 200 mm Stroke, G 3/8 Ports, Double-Acting, Pneumatic Adjustable Cushioning, 54 J Cushioning Energy, 19.5 mm Cushioning Length, Piston without Magnet, M20x1.5 External Thread Piston Rod, Single Piston Rod, 6.3 bar Pressure for Determining Piston Forces, 2855 N Retracting Piston Force, 3165 N Extracting Piston Force, -20 to 150 Deg C Ambient Temperature Range, 2 to 10 bar Working Pressure, 2.37 kg Weight 0 mm Stroke, 0.085 kg Weight +10 mm Stroke, 2800 mm Stroke Max., Heat-Resistant Scraper.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: PRA Series
Product Type: Profile Cylinders
