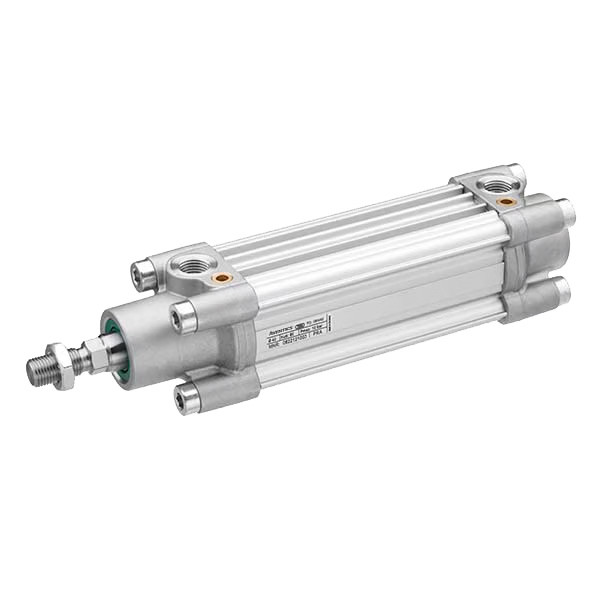

R480044479 Aventics PRA Series Profile Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics PRA Series Profile Cylinder, ISO 15552, 80 mm Piston Diameter, 160 mm Stroke, G 3/8 Ports, Double-Acting, Elastic Cushioning, Piston with Magnet, M20x1.5 External Thread Piston Rod, Single Piston Rod, 6.3 bar Pressure for Determining Piston Forces, 2855 N Retracting Piston Force, 3165 N Extracting Piston Force, -20 to 80 Deg C Ambient Temperature Range, '-20 Deg C Min. Medium Temperature, 1.5 to 10 bar Working Pressure, 2.5 J Impact Energy, 2.37 kg Weight 0 mm Stroke, 0. 085 kg Weight +10 mm Stroke, 2800 mm Stroke Max..

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series PRA
Product Type: Profile Cylinders
Max. Ambient Temperature: 80 °C
Min. Ambient Temperature: -20 °C
Stroke: 160 mm
Working Pressure: 1.5 to 10 bar
Accessories for: Actuators
