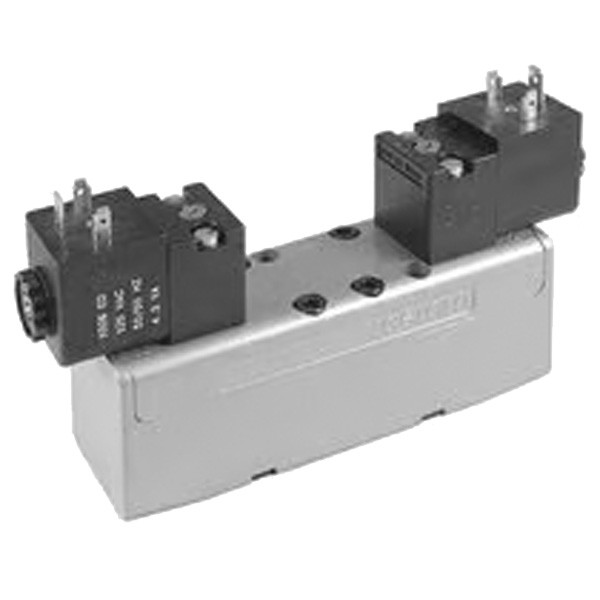

R432006368 Aventics Series CERAM 5/3-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CERAM 5/3-Directional Valve, Electrical Activation, ISO 1 Frame Size, 5/3, Exhausted Center, Double Solenoid, Ceramic Sealing, Manual Override with/without Detent, 1100 l/min Nominal Flow, 3 to 10.3 bar Working Pressure, Plug Connection, EN 175301-803, Form A, Internal Pilot, IP65, ISO 5599-1 Standard, -15 to 66 Deg C Ambient Temperature Range, Die-Cast Zinc Housing, 30 mm Pilot Valve Width, 24 VDC Operating Voltage, -10% / +10% Voltage Tolerance, 2.7 W Power Consumption.

  • Manufacturer: Aventics
  • Brand/Division: Numatics
  • Product Category: Valves
  • Product Family: Series CERAM
  • Product Type: Directional Valves
  • Electrical Connection Size: "EN 175301-803, Form A"
  • Electrical Connection Type: Plug
  • Frame Size: ISO 1
  • IP Rating: IP65
  • Manual Override: With Detent, Without Detent
  • Max. Ambient Temperature: 66 °C
  • Min. Ambient Temperature: -15 °C
  • Nominal Flow Qn: 1100 l/min
  • Operational Voltage: 24 VDC
  • Pilot: Internal
  • Working Pressure: 3 to 10.3 bar

R432006368
