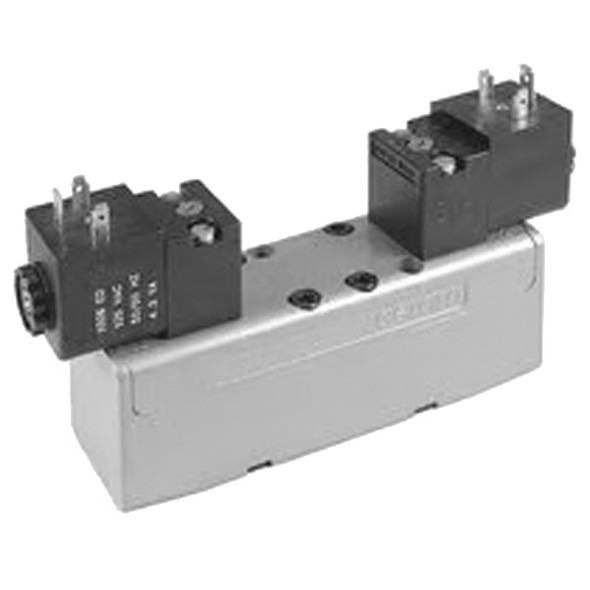

R432006199 Aventics Series CERAM 5/3-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CERAM 5/3-Directional Valve, Electrical Activation, ISO 3 Frame Size, 5/3, Closed Center, Double Solenoid, Ceramic Sealing, Manual Override with/without Detent, 4300 l/min Nominal Flow, 0 to 10.3 bar Working Pressure, Plug Connection, EN 175301-803, Form A, Internal Pilot, ISO 5599-1 Standard, -15 to 66 Deg C Ambient Temperature Range, Die-Cast Aluminum Housing, 30 mm CNOMO Pilot Valve Width, 24 VDC Operating Voltage, -10% / +10% Voltage Tolerance, 2.7 W Power Consumption.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series CERAM
Product Type: 5/3-Directional Valves
