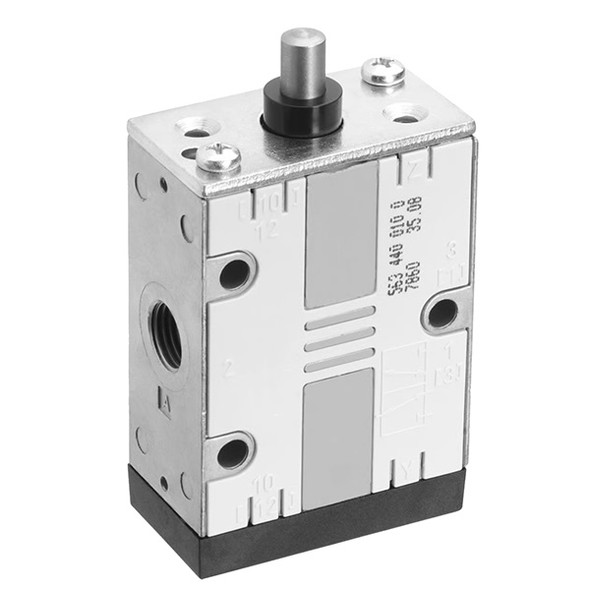

Image may represent a range of products. Product may vary based on listed specifications.
Aventics
Aventics Series AV05 2x3/2-Directional Valve, Electrical Activation, Spool Valve, Positive Overlapping, 2x 3/2 NC/NC, with Spring Return, Soft Seal, Manual Override w/ Detent, 650 l/min Nominal Flow, -0.9 to 10 bar Working Pressure, IP65, External Pilot, 24 VDC Operating Voltage, -10% / +10% Voltage Tolerance, 0.55W Power Consumption, -10 to 60 Deg C Ambient Temperature Range, 100% Duty Cycle, Yellow LED Status Display, 16 ms Switch-on Time, 25 ms Switch-off Time, Polyamide, Fiber-glass Reinforced Housing Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series AV05
- Product Type: Directional Valves
- Housing Material: Fiber-Glass Reinforced Polyamide
- IP Rating: IP65
- Manual Override: With Detent
- Max. Ambient Temperature: 60 °C
- Min. Ambient Temperature: -10 °C
- Nominal Flow Qn: 650 l/min
- Operational Voltage: 24 VDC
- Pilot: External
- Typ. Switch-Off Time: 25 ms
- Typ. Switch-On Time: 16 ms
- Working Pressure: -0.9 to 10 bar
