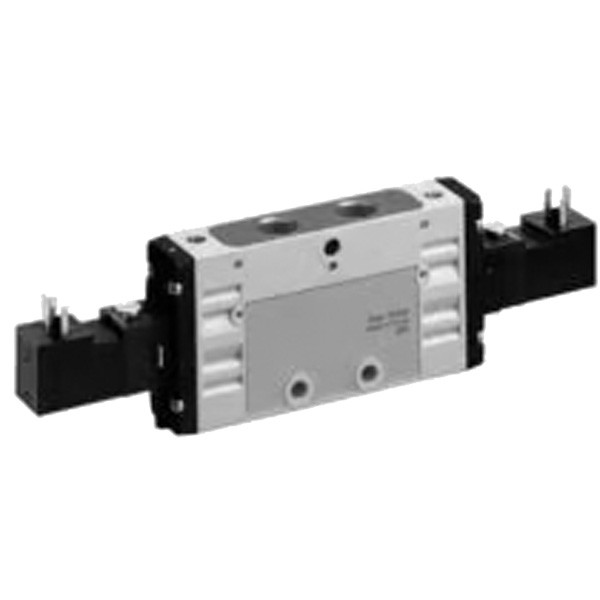

R422101273 Aventics Series TC15 5/3-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series TC15 5/3-Directional Valve, Electrical Activation, Spool Valve, Positive Overlapping, 5/3, Closed Center, Soft Seal, with Detent, Manual Override w/ Detent, Internal Thread, 1/4-18 NPTF Compressed Air Connection Output, 1300 l/min Nominal Flow, 3 to 10 bar Working Pressure, Plug Electrical Connection (ISO 15217, Form C), IP65, External Pilot, 24 VDC Operating Voltage, -10% / +10% Voltage Tolerance, 2W Power Consumption, 15.6 mm Coil Width, 15 mm Pilot Valve Width, -10 Deg C Min. Ambient Temperature, 100% Duty Cycle, 12 ms Switch-on Time, 13 ms Switch-off Time.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series TC15
Product Type: 5/3-Directional Valves
