Aventics

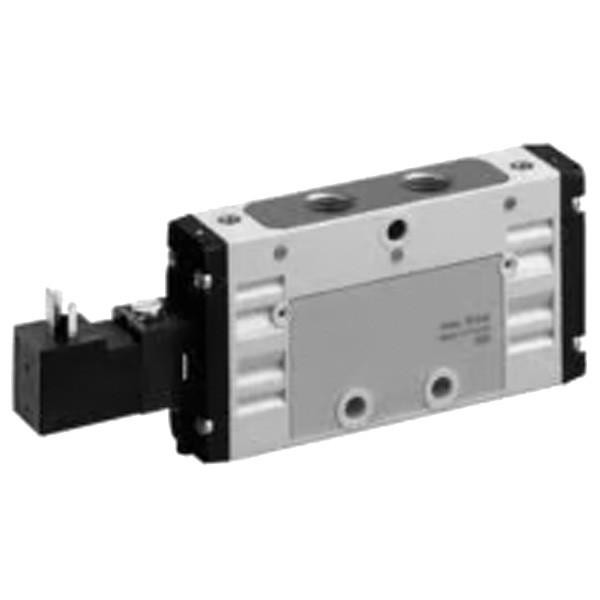

Aventics Series TC15 5/2-Directional Valve, Electrical Activation, Spool Valve, Positive Overlapping, 5/2, Double Solenoid, Soft Seal, with Detent, Manual Override w/ Detent, Internal Thread, 1/4-18 NPTF Compressed Air Connection Output, 1500 l/min Nominal Flow, 2 to 10 bar Working Pressure, Plug Electrical Connection (ISO 15217, Form C), IP65, Internal Pilot, 12 VAC / 110 VAC / 230 VAC Operating Voltage, 15.6 mm Coil Width, 15 mm Pilot Valve Width, -10 to 50 Deg C Ambient Temperature Range, 100% Duty Cycle, 10 ms Switch-on Time, 10 ms Switch-off Time.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series TC15
- Product Type: Directional Valves
- Electrical Connection Size: "ISO 15217, Form C"
- Electrical Connection Type: Plug
- IP Rating: IP65
- Manual Override: With Detent
- Max. Ambient Temperature: 50 °C
- Min. Ambient Temperature: -10 °C
- Nominal Flow Qn: 1500 l/min
- Operational Voltage: 12 VAC
- Operational Voltage: 110 VAC
- Operational Voltage: 230 VAC
- Pilot: Internal
- Typ. Switch-Off Time: 10 ms
- Typ. Switch-On Time: 10 ms
- Working Pressure: 2 to 10 bar
