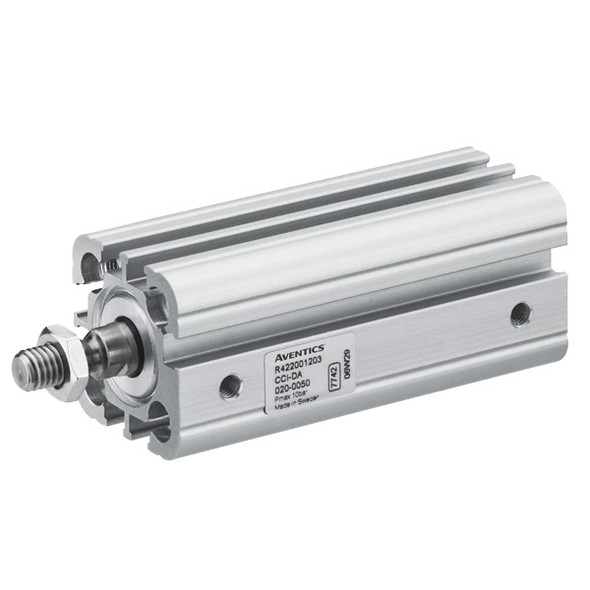

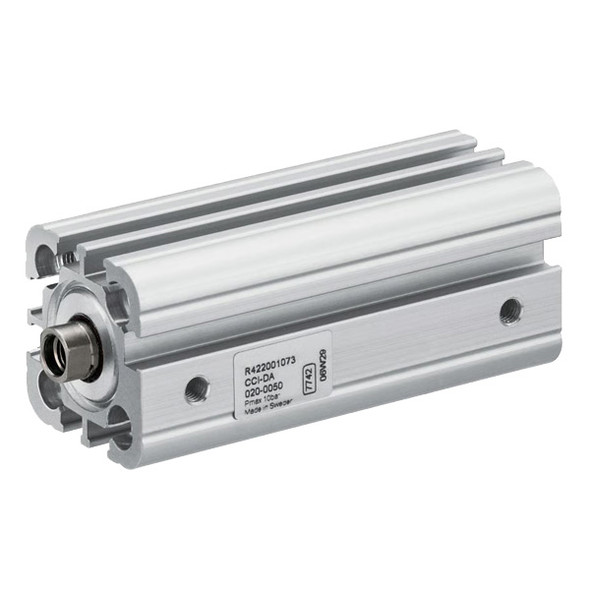

R422001334 Aventics Series CCI Compact Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CCI Compact Cylinder, ISO 21287, 25 mm Piston Diameter, 50 mm Stroke, M5 Ports, Double-Acting, Elastic Cushioning, Piston with Magnet, M6 Internal Thread Piston Rod, Non-Rotating, with Front Plate, Standard Industry Scraper, 6.3 bar Pressure for Determining Piston Forces, 260 N Retracting Piston Force, 309 N Extracting Piston Force, -20 to 80 Deg C Ambient Temperature Range, 1 to 10 bar Working Pressure, 0.3 J Impact Energy, 0.155 kg Weight 0 mm Stroke, 0.03 kg Weight + 10 mm Stroke, 300 mm Stroke Max, -20 Deg C Min. Medium Temperature.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: Series CCI
Product Type: Compact Cylinders
