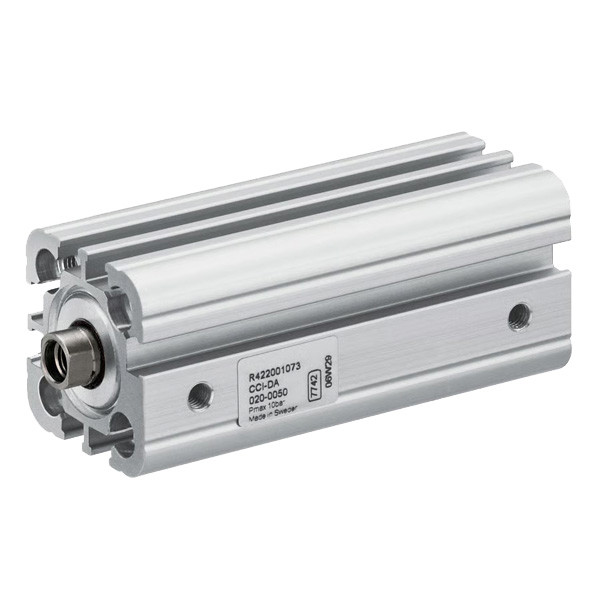

R422001099 Aventics Series CCI Compact Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CCI Compact Cylinder, ISO 21287, 80 mm Piston Diameter, 80 mm Stroke, G 1/8 Ports, Double-Acting, Elastic Cushioning, Piston with Magnet, M12 Internal Thread Piston Rod, Single Piston Rod, Standard Industry Scraper, 6.3 bar Pressure for Determining Piston Forces, 2969 N Retracting Piston Force, 3167 N Extracting Piston Force, -20 to 80 Deg C Ambient Temperature Range, 1 to 10 bar Working Pressure, 1.8 J Impact Energy, 1.11 kg Weight 0 mm Stroke, 0.116 kg Weight + 10 mm Stroke, 500 mm Stroke Max, -20 Deg C Min. Medium Temperature.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series CCI
Product Type: Compact Cylinders
Max. Ambient Temperature: 80 °C
Min. Ambient Temperature: -20 °C
Stroke: 80 mm
Working Pressure: 1 to 10 bar
Accessories for: Actuators
