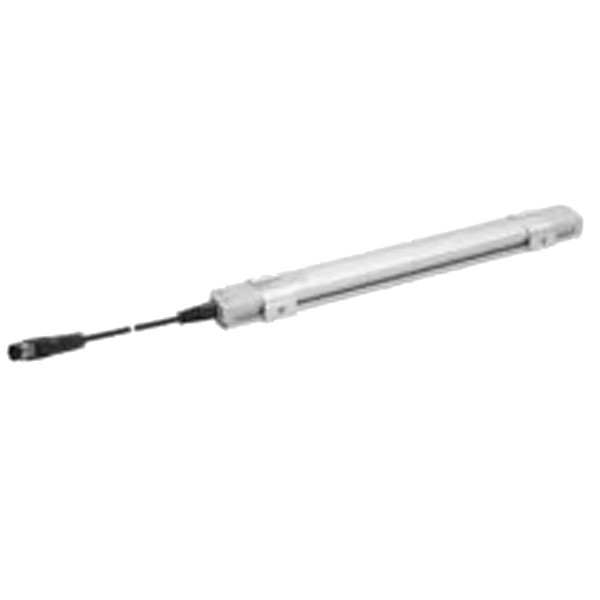

R412010900 Aventics Series SM6-AL Sensor

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series SM6-AL Sensor, Indirect Mounting for Series PRA, ITS, RTC, CVI, M8x1 Electrical Plug (4-Pin), with Distance Measuring Sensor, Measurement Range 107 to 1007 mm, Max Measuring Range 827 mm, 0.3m Cable, Quiescent Current (without load) < 35 mA, Repetitive Precision Max. Measuring Range 0.06% FSR, 500 Ohm Maximum Load (analog current output), Output Signal 0-10 VDC, 4-20 mA, Residual Ripple <= 10%, 1.15 ms Sampling Interval, cUlus, IP65, IP67, -20 to 70 Deg C Ambient Temperature Range, 0.5 mm Linearity Deviation, 30 g / 11 ms Shock Resistance, 10-55 Hz, 1 mm Vibration Resistance, 2 LED Display, Aluminum Housing Material, Polyurethane Cable Sheath Material.

Manufacturer: Aventics
Product Family: Series SM6
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Sensors
Product Type: Sensors
Housing Material: Aluminum
IP Rating: IP65/IP67
Max. Ambient Temperature: 70 °C
Min. Ambient Temperature: -20 °C
