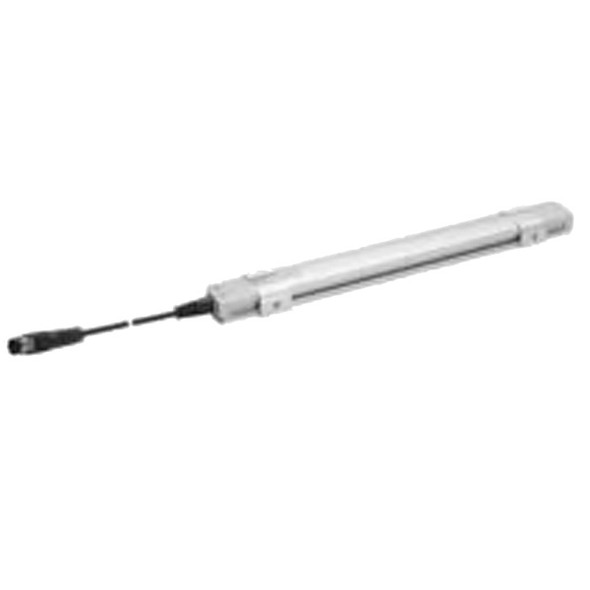

R412010262 Aventics Series SM6 Sensor

Aventics Series SM6 Sensor, Direct Mounting for Series PRA, PRE, CCI, KPZ, SSI, GPC, CVI, Indirect Mounting for Series TRB, ITS, 167, MNI, ICM, TRR, without Wire End Ferrule, Tin-Plated, with 2m Cable, 6 mm Groove, < 25 mA Quiescent Current (without Load), 0.1 mm Repetitive Precision Max. Measuring Range, 500 Ohm Maximum Load (analog current output), Output Signal: 0-10 VDC & 4-20 mA, 1 ms Sampling Interval, cULus, IP67, -20 to 70 Deg C Ambient Temperature, 96 mm Max. Measuring Range, Yellow LED Status Display, 0.05 mm Max. Measuring Range Resolution, 0.3 mm Linearity Deviation, 3 m/s Sampling Speed, 30 g / 11 ms Shock Resistance, 10-55 Hz, 1 mm Vibration Resistance, Polyarylamide, Fiber-glass Reinforced Housing Material.
