Aventics

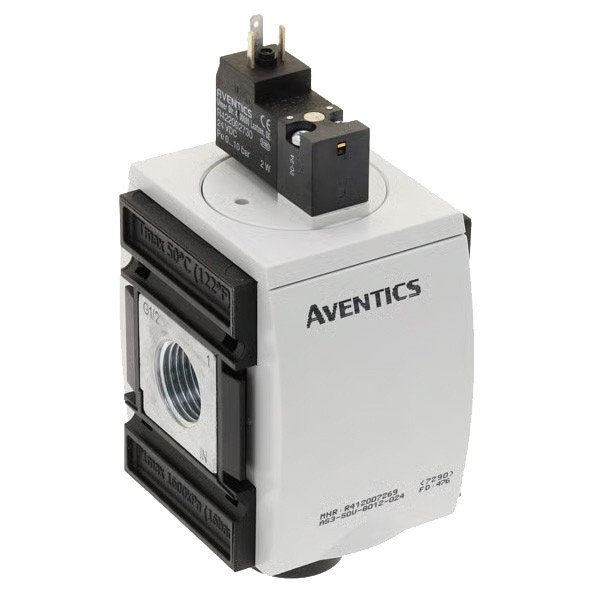

Aventics Series AS3-SOV 3/2-Directional Valve, Electrical Activation, Poppet Valve, 4500 l/min Nominal Flow, Pipe Connection, G 1/2 Compressed Air Connection & Exhaust, Soft Seal, 2.5 to 16 bar Working Pressure, Can be Assembled into Blocks, Basic Valve without Pilot Valve, -10 to 50 Deg C Ambient Temperature, 25 Micron Max Particle Size, 4500 l/min Nominal Flow Qn 1 to 2, 3200 l/min Qn 2 to 3, 24 VDC Operating Voltage, 2W Power Consumption, Protected against Polarity Reversal, Plug Connection, ISO 15217 Connector Standard, IP65.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series AS3
- Product Type: Directional Valves
- Electrical Connection Size: "ISO 15217, Form C"
- Electrical Connection Type: Plug
- IP Rating: IP65
- Max. Ambient Temperature: 50 °C
- Micron Rating: 25 µm
- Min. Ambient Temperature: -10 °C
- Operational Voltage: 24 VDC
- Working Pressure: 2.5 to 16 bar
