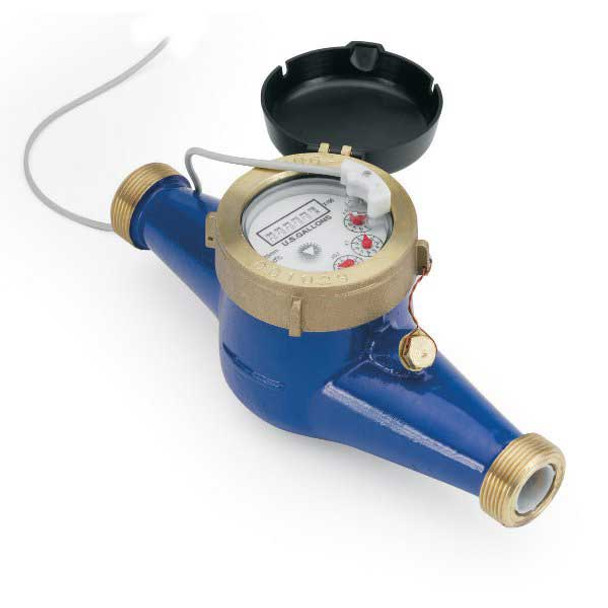

MJR-200-1G-06 Seametrics Cold Water Pulse Meter

Image may represent a range of products. Product may vary based on listed specifications.

Seametrics MJ-Series Cold Water Pulse Meter, 2.0 FPT, dry contact, two-wire reed switch sensor, bronze body, 150 psig @105 deg F, 1.98-132 gpm, 1 gal/pulse, 24VDC 20 mA output. LMI pump 4-pin connector (-06) option

  • Manufacturer: Seametrics
  • Body Material: Cast Bronze Body
  • Flow Range: 1.98 - 132 gpm
  • Max. Pressure: 150 PSIG
  • Max. Temperature: 105°F
  • Max. Voltage Current: 24VDC 20 mA output
  • Options: LMI pump 4-pin connector (-06)
  • Power Type: 6 mA at 12 VDC
  • Product Type: Pulse Meters
  • Pulse Rate: 1 gal/pulse
  • Sensor Type: Two-wire reed switch sensor
  • Size: 2 in.
  • Product Family: MJ / MJH Series
  • Product Category: Flow Meters

MJR-200-1G-06
