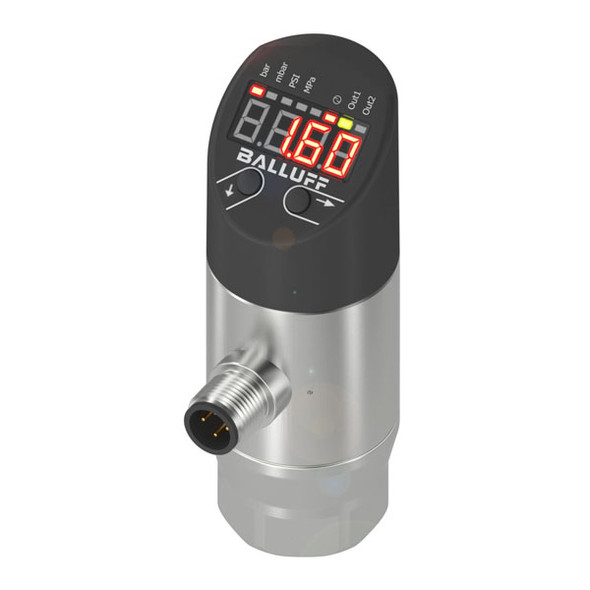

BSP00Y6 Balluff Digital Pressure Sensor w/ Display

Image may represent a range of products. Product may vary based on listed specifications.

Balluff Digital Pressure Sensor w/ Display, Measuring Range: 0 to 20 bar, Accuracy: +/-0.5% FSO BFSL, Overload Pressure: 40 bar, Burst Pressure: 70 bar, Interface: IO-Link 1.1 Analog Output: Analog, Voltage/Analog, Current Selectable 4-20 mA/0-10 V, Switching Output: 2x PNP/NPN NO/NC Switchable, Connector, M12x1-Male, 4-Pin, Process Connection: G 1/4 in. (DIN 3852) (1.4301 Stainless Steel), Housing Material: 1.4301 Stainless Steel, PE, High-Density Polyethylene, Gasket: Fluoroelastomer, -40 to 85 Deg C Ambient Temperature, Media Temperature: -40 to 125 Deg C, 18 to 30 VDC Operating Voltage, IP67 (when threaded in), CE, cULus, UKCA, WEEE Approval/Conformity.

Manufacturer: Balluff
LINKS_Browse All Balluff Products: /manufacturers/balluff
Product Category: Sensors
Product Type: Pressure Sensors
Housing Material: 1.4301 Stainless Steel, PE, High-Density Polyethylene
IP Rating: IP67
Sensing Distance: 0 to 20 bar
