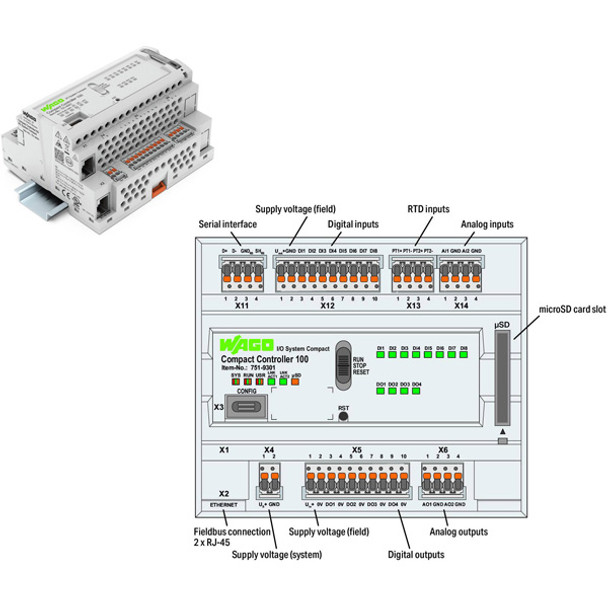

751-9301 WAGO 751 Series Programmable Logic Controller (PLC) CPU Unit

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 751 Series Programmable Logic Controller (PLC) CPU unit, (751 series), Cortex A7 650MHz processor, with 512MB memory (RAM) + 4GB internal memory (flash), with Modbus TCP communication capability, supply voltage 20.4-28.8Vdc via wiring (24Vdc nom.), with 2 x RJ45 connectors (fieldbus), DIN-35 rail mounting (108mm width), with microSD card slot (up to 32GB), IP20, rated for -25°C...+60°C ambient, equivalent to 7519301.

  • Manufacturer: WAGO
  • Product Family: 751 Series
  • Product Category: Controllers
  • Product Type: Programmable Controllers
  • Ambient air temperature for operation: -25°C...+60°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): -25 | +60 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Baud rate (communication/fieldbus 1): 10/100 Mbit/s
  • CPU: Cortex A7; 650 MHz
  • Communication protocol: Modbus TCP
  • Conformity marking: CE; UKCA
  • Connection type (electrical) (filter / rank = 0005030): RJ-45 connector
  • Controls: Operating mode switch (RUN, STOP, RESET); reset button
  • Data memory: 128 MB
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth from upper-edge of DIN-rail: 55 mm / 2.165 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H90mm x W108mm x D55mm
  • ETHERNET protocols: DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH
  • Fine-stranded conductor: 0.2 | 1.5 mm² / 24 | 14 AWG
  • General approvals additional text: UL 61010-2-201
  • Height: 90 mm / 3.543 inches
  • Housing Material: Polycarbonate, polyamid
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input characteristic: Type 3 (per EN 61131-2)
  • Internal memory (flash): 4096MB
  • Isolation: 1250 V (DC 1 min., between system and field level)
  • Main memory (RAM): 512MB
  • Material: Polycarbonate (PC) / Polyamide (PA) housing
  • Memory card slot: Push-push mechanism
  • Mounting mode: DIN rail
  • Mounting position: Any
  • Net Width (mm): 108mm
  • Non-volatile hardware memory: 128Kbytes
  • Non-volatile software memory: 128.Kbytes
  • Number of analog inputs: 2
  • Number of analog outputs: 2
  • Number of digital inputs: 8
  • Number of digital outputs: 4
  • Operating System (OS): Real-time Linux (with RT-Preempt patch)
  • Operating system: Real-time Linux (with RT-Preempt patch)
  • Pollution degree (5): 2 per IEC 61131-2
  • Processor type: Cortex A7 650MHz processor
  • Program memory: 32 MB
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal type: Voltage|Resistance measurement
  • Signal type (voltage): 0 | 10 VDC
  • Solid conductor: 0.2 | 1.5 mm² / 24 | 14 AWG
  • Speed: 10Mbit/s|100Mbit/s
  • Storage type: microSD card slot (up to 32GB)
  • Supply voltage (DC): 20.4-28.8Vdc via wiring (24Vdc nom.)
  • Supply voltage (DC): 24Vdc
  • Surrounding air temperature (storage): -40 | +85 °C
  • Type of memory card: microSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
  • Vibration resistance: 1g per IEC 60068-2-6
  • Visualization: Web-Visu|Web Visu
  • Weight: 348g
  • Width: 108 mm / 4.252 inches
  • Connection type (electrical): RJ-45 connector

751-9301
