750-838 WAGO 750 Series Programmable Logic Controller (PLC) CPU Unit

Image may represent a range of products. Product may vary based on listed specifications.

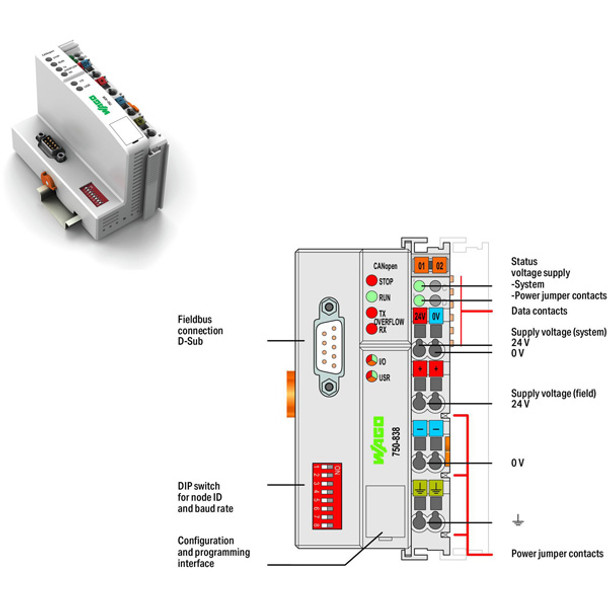

WAGO 750 Series Programmable Logic Controller (PLC) CPU unit, Controller CANopen; M1; D-Sub, 16-bit processor, 64 x connections per node + 110 x fieldbus mode on the controller (master) connection capability, with CANopen communication capability, supply voltage 18-31.2Vdc via wiring (24Vdc nom.), with 9-pin D-sub connector (fieldbus) + cage-clamp 2-pin (system), DIN-35 rail mounting (71.1mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750838.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Controllers
Product Type: Programmable Controllers
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -25°C...+85°C
Ambient temperature (operation): 0 | +55 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Approvals for marine applications additional text: -|-|-|DNV-CG-0339,Aug.2021|-|-|-
CPU: 16 bits
Communication protocol: CANopen
Conformity marking: CE
Connection capacity: 64 x connections per node|110 x fieldbus mode on the controller (master)
Connection type (electrical) (filter / rank = 0005030): D-Sub connector|Terminals (Cage-clamp)
Current carrying capacity (power jumper contacts): 10A
Current consumption (5 V system supply): 350mA
Data memory: 64 KB
Degree of pollution: 2
Degree of protection: IP20
Depth: 71.1 mm / 2.799 inches
Depth from upper-edge of DIN-rail: 63.9 mm / 2.516 inches
Digital inputs quantity: no digital inputs
Digital outputs quantity: no digital outputs
Dimensions: H100mm x W50.5mm x D71.1mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Fire load: 3.098MJ
General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Input and output process image (fieldbus) max.: 512 bytes/512 bytes
Input current (typ.) at nominal load (24 V): 500mA
Isolation: 500 V system/field
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Memory for fieldbus input variables (max.): 512Byte
Memory for fieldbus output variables (max.): 512Byte
Mounting mode: DIN rail
Mounting position: any
Net Width (mm): 71.1mm
Non-volatile software memory: 8Kbytes
Number of fieldbus nodes on master (max.): 110
Number of modules per node (max.): 64
Number of outgoing power jumper contacts: 3
Pollution degree (5): 2 per IEC 61131-2
Power supply efficiency (typ.) at nominal load (24 V): 0.87
Processor type: 16-bit processor
Program memory: 128 KB
Protection type: IP20
Relative humidity (without condensation): 0.95
Shock resistance: 15g per IEC 60068-2-27
Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Speed: 10kbit/s-1Mbit/s
Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)
Supply voltage (DC): 24Vdc
Surrounding air temperature (storage): -25 | +85 °C
Total current (system supply): 1,650mA
Vibration resistance: 4g per IEC 60068-2-6
Visualization: none
Weight: 184.2g
Width: 50.5 mm / 1.988 inches
Connection type (electrical): D-Sub connector|Terminals (Cage-clamp)
