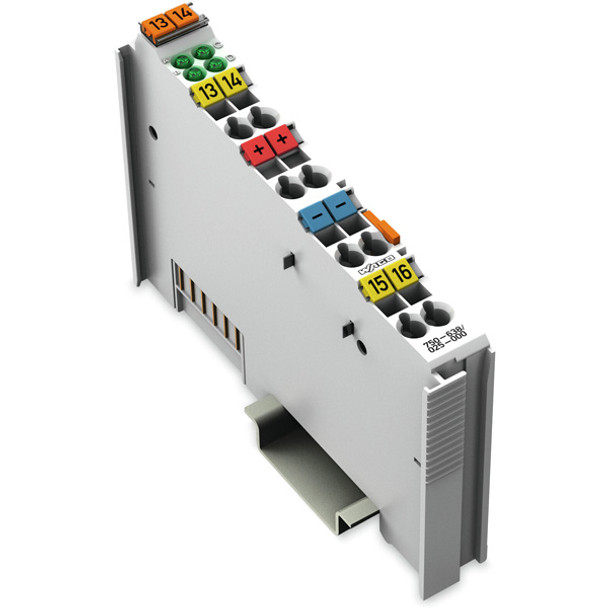

750-638/025-000 WAGO 750 Series Standard 2 x Up/Down Counter Slice Module w/ Extended Temperature Range

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Standard 2 x Up/Down counter slice module with extended temperature range, 2Up/Down Counter; 16-bits; 500Hz; T, 2I/O [2DI (2 x digital inputs (counter; 16-bits))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -20°C...+60°C ambient, equivalent to 750638025000.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Counter Modules
  • Ambient air temperature for operation: -20°C...+60°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): -20 | +60 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Counter depth: 16bits
  • Current consumption (5 V system supply): 10mA
  • Current consumption, field supply (module with no external load): 8mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 69.8 mm / 2.748 inches
  • Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
  • Digital inputs quantity: 2
  • Digital inputs type: DC|Counter
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W12mm x D69.8mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 0.994MJ
  • Frequency: 500Hz switching frequency
  • General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input filter: 0.2 ms
  • Isolation: 500 V system/field
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 12mm
  • Number of counters: 2
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Pollution degree (5): 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal characteristics: Differential
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
  • Surrounding air temperature (storage): -40 | +85 °C
  • Switching frequency (max.): 500 Hz
  • Vibration resistance: per IEC 60068-2-6
  • Voltage range for signal (1): 15 | 30 VDC (per EN 61131 Type 1)
  • Weight: 50g
  • Width: 12 mm / 0.472 inches
  • Connection type (electrical): Terminals (Cage-clamp)

750-638/025-000
