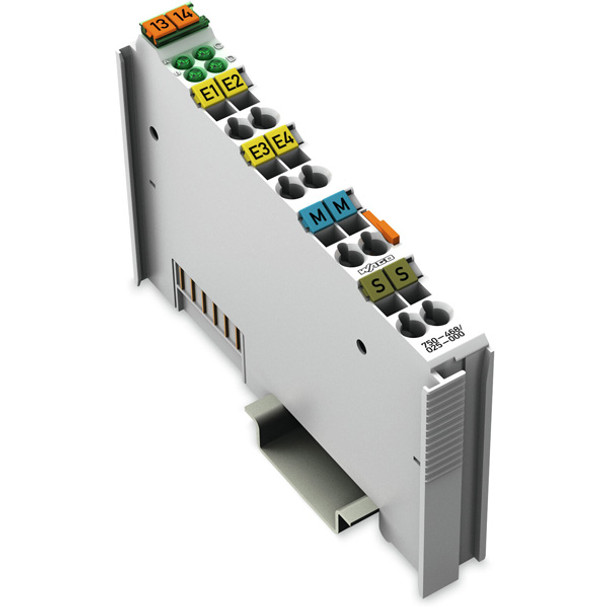

WAGO 750 Series Standard analog input slice module with extended temperature range, 4AI; 0-10Vdc; SE; T, 4I/O [4AI (4 x analog inputs (0-10Vdc; Single-ended; 12-bits / 4ms conversion; 2-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -20°C...+60°C ambient, equivalent to 750468025000.
- Manufacturer: WAGO
- LINKS_Browse All WAGO Products: /manufacturers/wago
- Product Family: 750 Series
- Product Category: Connectivity
- Product Type: Input Modules
- Ambient air temperature for operation: -20°C...+60°C
- Ambient air temperature for storage: -40°C...+85°C
- Ambient temperature (operation): -20 | +60 °C
- Analog input resolution: 12-bit
- Analog inputs quantity: 4
- Analog outputs quantity: no analog outputs
- Approvals for marine applications additional text: -|-|DNV-CG-0339,Aug.2021|-|-
- Conformity marking: CE
- Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
- Conversion time (typ.): 4ms
- Current consumption (5 V system supply): 60mA
- Degree of pollution: 2
- Degree of protection: IP20
- Depth: 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
- Digital inputs quantity: no digital inputs
- Digital outputs quantity: no digital outputs
- Dimensions: H100mm x W12mm x D69.8mm
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
- Fire load: 0.979MJ
- General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
- Height: 100 mm / 3.937 inches
- Housing Material: Polycarbonate; polyamide 6.6
- Humidity: 95% relative humidity (RH; non-condensing)
- Input voltage (max.): 35 V
- Internal resistance: 133k
- Isolation: 500 V system/field
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Measurement error (reference temperature): 25°C
- Measurement error, deviation (max.) from the upper-range value: 0.002
- Mounting mode: DIN rail
- Mounting position: horizontal (standing/lying); vertical
- Net Width (mm): 12mm
- Number of analog inputs: 4
- Pollution degree (5): 2 per IEC 61131-2
- Processing time: 4ms
- Protection type: IP20
- Relative humidity (without condensation): 0.95
- Resolution [bit]: 12bits
- Shock resistance: 15g per IEC 60068-2-27
- Signal characteristics: Single-ended
- Signal type: Voltage
- Signal type (voltage): 0 | 10 VDC
- Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
- Supply voltage (DC): 5Vdc (supplied by system)
- Surrounding air temperature (storage): -40 | +85 °C
- Temperature error (max.) of the upper-range value: 0.01%/K
- Total number of channels (module): 4
- Vibration resistance: 4g per IEC 60068-2-6
- Weight: 48.9g
- Width: 12 mm / 0.472 inches
- Connection type (electrical): Terminals (Cage-clamp)
