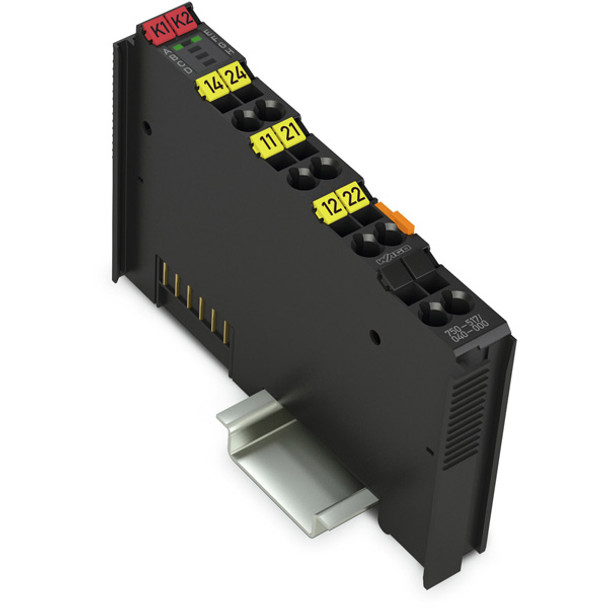

750-517/040-000 WAGO 750 Series Standard Rly. Output Slice Module w/ Extended Temperature Range

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Standard rly. output slice module with extended temperature range, (750 XTR), 2RO; 250 VAC; 1A; Rly. 2CO; XTR, 2I/O [2DO (2 x digital outputs (C/O rly. contacts (potential-free); 1A at 250Vac/40Vdc / 0.15A at 300Vdc; 1-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -40°C...+70°C ambient, equivalent to 750517040000.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Output Module
Ambient air temperature for operation: -40°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): -40 | +70 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Approvals for marine applications additional text: -|DNV-CG-0339,Aug.2021|-|-
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Contact material: Ag alloy
Current consumption (5 V system supply): 90mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
Dielectric strength: 2.5 kV (AC)/3.5 kV (DC); per EN 60870-2-1
Digital inputs quantity: no digital inputs
Digital outputs quantity: 2
Digital outputs type: AC|DC|Relay (Form-C)|Relay (type NO/NC)|Relay (type SPDT)|Relay (type 1a1b)
Dimensions: H100mm x W12mm x D67.8mm
Drop-out time (max.): 4ms
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
Fire load: 0.147MJ
Frequency: 0.1Hz switching frequency
General approvals additional text: TP TC 020/2011|TP TC 004/2011|Article 58-2, Clause 3|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Load type of switching frequency: Nominal load
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: Horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of digital outputs: 2
Output characteristic: Potential-free
Output circuit design: 2 changeover contacts|Relay
Output data width (internal) max.: 2bits
Pollution degree (5): 2 (EN 61010-1)
Protection type: IP20
Pull-in time (max.): 8ms
Relative humidity (without condensation): 0.95
Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Solid conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
Sub-range name: XTR
Supply voltage (DC): 5Vdc (supplied by system)
Surrounding air temperature (storage): -40 | +85 °C
Switching current (max.): 1A
Switching current (min.): 100mA
Switching frequency (max.): 0.1 Hz; Nominal load
Switching voltage (max.): 250 VAC, 300 VDC
Switching voltage (min.): 12V
Total number of channels (module): 2
Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Weight: 53.5g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
