750-1515/040-000 WAGO 750 Series Standard DC Digital Output Slice Module w/ Extended Temperature Range

Image may represent a range of products. Product may vary based on listed specifications.

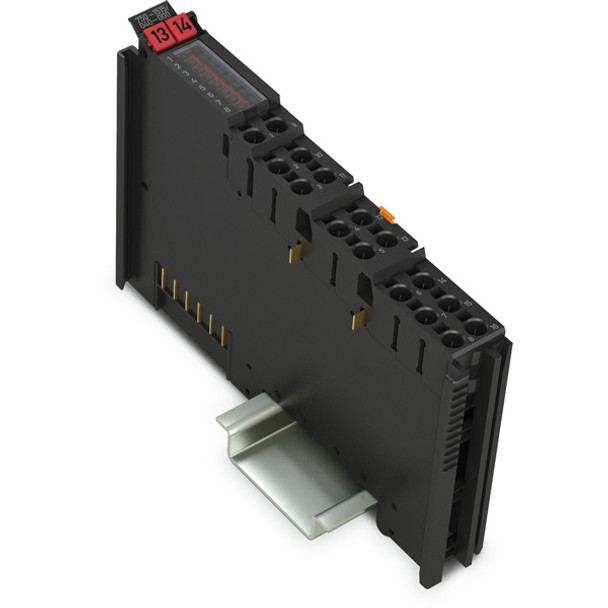

WAGO 750 Series Standard DC digital output slice module with extended temperature range, (750 XTR), 8DO; 24Vdc; 0.5A; 2-wire; XTR, 8I/O [8DO (8 x digital outputs (24Vdc / 500mA; high-side switching; 2-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -40°C...+70°C ambient, equivalent to 7501515040000.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Output Module
Ambient air temperature for operation: -40°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): -40 | +70 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Approvals for marine applications additional text: -|DNV-CG-0339,Aug.2021|-|-
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Current carrying capacity (power jumper contacts): 10A
Current consumption (5 V system supply): 20mA
Current consumption, field supply (module with no external load): 15mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 69 mm / 2.717 inches
Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
Dielectric strength: 510 VAC/775 VDC; per EN 60870-2-1
Digital inputs quantity: no digital inputs
Digital outputs quantity: 8
Digital outputs type: DC
Dimensions: H100mm x W12mm x D69mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.25 | 1.5 mm² / 24 | 16 AWG
Fire load: 0.158MJ
Frequency: 1kHz switching frequency
General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Interference-free with safety function: Yes
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of digital outputs: 8
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Output characteristic: high-side switching
Output current per channel: 0.5A
Output data width (internal) max.: 8bits
Pollution degree (5): 2 per IEC 61131-2
Protection type: IP20
Relative humidity (without condensation): 0.95
Shock resistance: per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Signal type: Voltage
Signal type (voltage): 24 VDC
Solid conductor: 0.25 | 1.5 mm² / 24 | 16 AWG
Sub-range name: XTR
Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
Surrounding air temperature (storage): -40 | +85 °C
Switching frequency (max.): 1 kHz
Total number of channels (module): 8
Vibration resistance: per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Weight: 48g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
