750-482 WAGO 750 Series Standard Analog Input Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

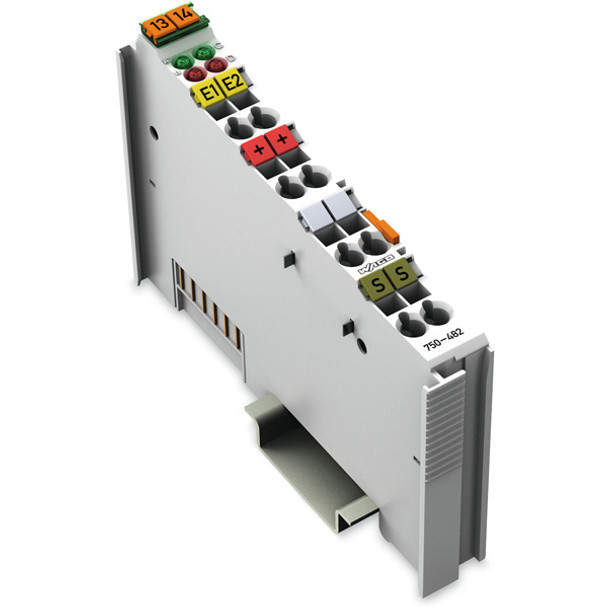

WAGO 750 Series Standard analog input slice module, 2AI; 4-20mA HART, 2I/O [2AI (2 x analog inputs (4-20mA; Single-ended; 12-bits / 10ms conversion / HART; 2-wire))], with HART communication capability, supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750482.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Input Modules
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): 0 | +55 °C
Analog input resolution: 12-bit
Analog inputs quantity: 2
Analog outputs quantity: no analog outputs
Communication protocol: HART
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Conversion time (typ.): 10ms
Current consumption (5 V system supply): 65mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 69.8 mm / 2.748 inches
Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
Digital inputs quantity: no digital inputs
Digital outputs quantity: no digital outputs
Dimensions: H100mm x W12mm x D69.8mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Fire load: 0.954MJ
General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Input filter: parameterizable
Input voltage (max.): 24 V
Isolation: 500 V system/field
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.001
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of analog inputs: 2
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Overvoltage protection: 30 V, reverse polarity protected
Pollution degree (5): 2 per IEC 61131-2
Processing time: 10ms
Protection type: IP20
Relative humidity (without condensation): 0.95
Resolution [bit]: 12bits
Shock resistance: 15g per IEC 60068-2-27
Short-circuit detection: I meas > 22 mA
Signal characteristics: Single-ended
Signal type: Current
Signal type (current): 4 | 20 mADC
Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
Surrounding air temperature (storage): -25 | +85 °C
Temperature error (max.) of the upper-range value: 0.01%/K
Total number of channels (module): 2
Vibration resistance: per IEC 60068-2-6
Weight: 52.1g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
