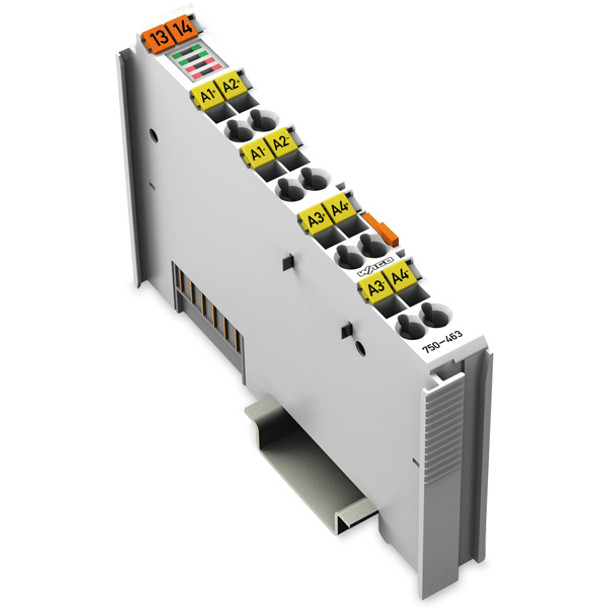

750-463 WAGO 750 Series Standard Analog Input Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Standard analog input slice module, 4AI; RTD; Adjust, 4I/O [4AI (4 x analog inputs (Configurable RTD Pt1000 / Ni1000 / Thermistor KTY 81 / 0.1°C resolution))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750463.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Input Modules
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): 0 | +55 °C
Analog inputs quantity: 4
Analog outputs quantity: no analog outputs
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Current consumption (5 V system supply): 50mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
Digital inputs quantity: no digital inputs
Digital outputs quantity: no digital outputs
Dimensions: H100mm x W12mm x D67.8mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Fire load: 0.954MJ
General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Isolation: 500 V system/field
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of analog inputs: 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Pollution degree (5): 2 per IEC 61131-2
Processing time: 320ms
Protection type: IP20
Relative humidity (without condensation): 0.95
Resolution (over entire range): 0.1 °C
Response time (max.): 4s
Shock resistance: 15g per IEC 60068-2-27
Signal type: Resistance measurement
Signal type (configurable): yes
Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
Surrounding air temperature (storage): -25 | +85 °C
Temperature coefficient: ≤ 20 ppm/K
Total number of channels (module): 4
Vibration resistance: per IEC 60068-2-6
Weight: 49.7g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
