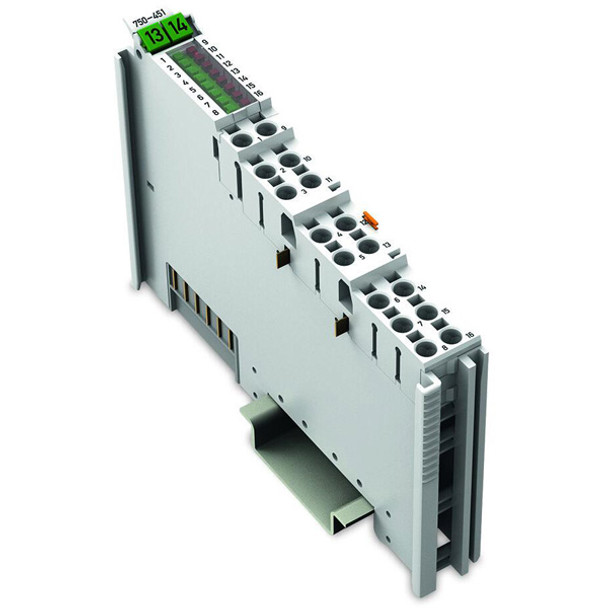

WAGO 750 Series Standard analog input slice module with extended temperature range, 8AI; RTD; Adjust; T, 8I/O [8AI (8 x analog inputs (Configurable RTD Pt100 / Pt200 / Pt500 / Pt1000 / Ni100 / Ni120 / Ni1000 (TK6180 / TK5000) / Potentiometer 0...1200Ω / 0...5000Ω / 0.1°C resolution / 100ms conversion; 2-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -20°C...+60°C ambient, equivalent to 750451025000.
- Manufacturer: WAGO
- LINKS_Browse All WAGO Products: /manufacturers/wago
- Product Family: 750 Series
- Product Category: Connectivity
- Product Type: Input Modules
- Ambient air temperature for operation: -20°C...+60°C
- Ambient air temperature for storage: -40°C...+85°C
- Ambient temperature (operation): -20 | +60 °C
- Analog inputs quantity: 8
- Analog outputs quantity: no analog outputs
- Conformity marking: CE
- Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
- Conversion time (typ.): 100ms
- Current consumption (5 V system supply): 110mA
- Degree of pollution: 2
- Degree of protection: IP20
- Depth: 69 mm / 2.717 inches
- Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
- Digital inputs quantity: no digital inputs
- Digital outputs quantity: no digital outputs
- Dimensions: H100mm x W12mm x D69mm
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Fine-stranded conductor: 0.25 | 1.5 mm² / 22 | 16 AWG
- Fire load: 0.822MJ
- General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3
- Height: 100 mm / 3.937 inches
- Housing Material: Polycarbonate; polyamide 6.6
- Humidity: 95% relative humidity (RH; non-condensing)
- Isolation: 500 V system/field
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Mounting mode: DIN rail
- Mounting position: horizontal (standing/lying); vertical
- Net Width (mm): 12mm
- Number of analog inputs: 8
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Pollution degree (5): 2 per IEC 61131-2
- Processing time: 100ms
- Protection type: IP20
- Relative humidity (without condensation): 0.95
- Resolution (over entire range): 0.1 °C (over the entire range); 0.01 °C (–50 | 150 °C; Pt1000, Ni1000)
- Response time (max.): 3s
- Shock resistance: 15g per IEC 60068-2-27
- Signal type: Resistance measurement|Potentiometer positions
- Signal type (configurable): yes
- Solid conductor: 0.08 | 1.5 mm² / 28 | 16 AWG
- Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
- Surrounding air temperature (storage): -40 | +85 °C
- Total number of channels (module): 8
- Vibration resistance: 4g per IEC 60068-2-6
- Weight: 49g
- Width: 12 mm / 0.472 inches
- Connection type (electrical): Terminals (Cage-clamp)
