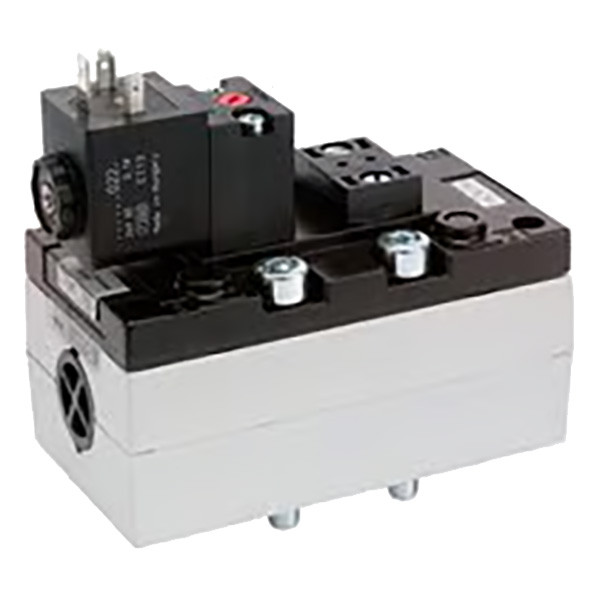

5813172650 Aventics Series 581 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series 581 5/2-Directional Valve, Electrically Actuated, Spool Valve, Size 3, 5/2, with Spring Return, Soft Seal, with/without Detent, Compressed Air Connection Input/Output/Exhaust: Base Plate ISO 5599-1, M5 Pilot Exhaust, Plate Connection, 4800 l/min Nominal Flow, -0.95 to 10 bar Working Pressure, Plug Connection, EN 175301-803, Form A, External Pilot, ISO 3 Frame Size, 30x22 mm CNOMO Pilot Valve Width, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, 2W Power Consumption, Single Base Plate Principle.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series 581
Product Type: Directional Valves
