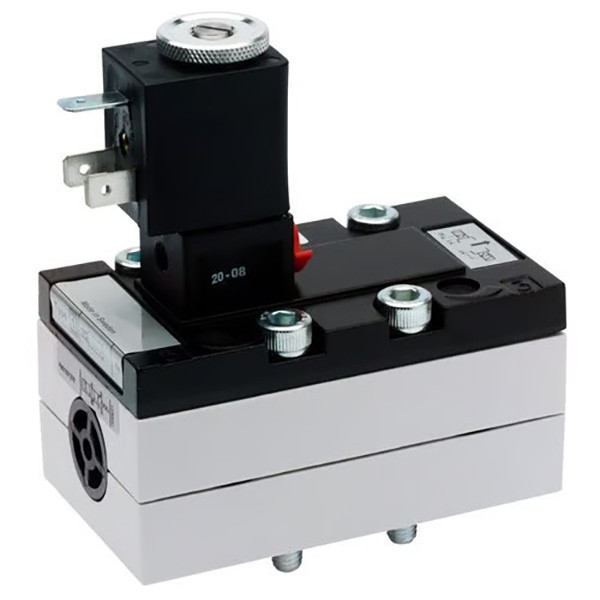

5812110100 Aventics Series 581 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series 581 5/2-Directional Valve, Single Air Pilot, Electrically Actuated, Spool Valve, Size 2, 5/2, with Spring Return, Soft Seal, Compressed Air Connection Input/Output/Exhaust: Base Plate ISO 5599-1, M5 Pilot Exhaust, Plate Connection, 2700 l/min Nominal Flow, 3 to 10 bar Working Pressure, Plug Connection, Form B, Internal Pilot, ISO 2 Frame Size, 22 mm Pilot Valve Width, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, 5W Power Consumption, 3 bar Minimum Control Pressure, Single Base Plate Principle, Plate Connection.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series 581
Product Type: Directional Valves
