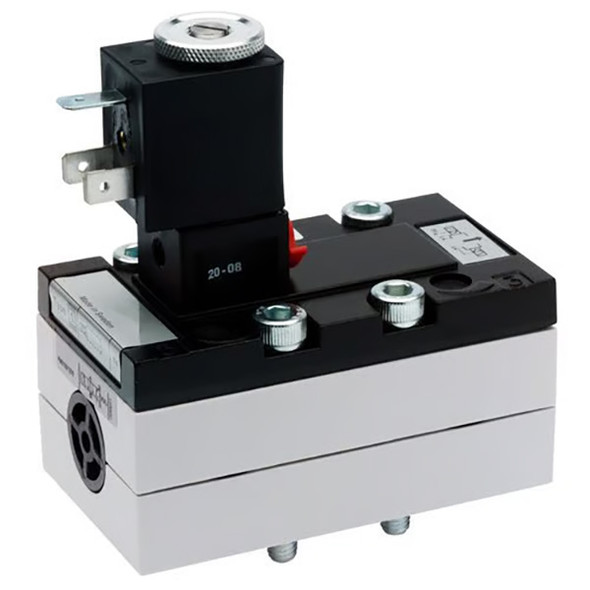

5812221000 Aventics Series 581 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series 581 5/2-Directional Valve, Double Solenoid, Electrically Actuated, Spool Valve, Size 2, 5/2, Basic Valve without Coil, Soft Seal, Compressed Air Connection Input/Output/Exhaust: Base Plate ISO 5599-1, M5 Pilot Exhaust, Plate Connection, 2700 l/min Nominal Flow, 1.5 to 10 bar Working Pressure, 1.5 to 10 bar Control Pressure, Plug Connection, Form B, Internal Pilot, ISO 2 Frame Size, -15 Deg C Min. Ambient Temperature, 22 mm Pilot Valve Width, Single Base Plate Principle, with Throttle.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series 581
Product Type: Directional Valves
