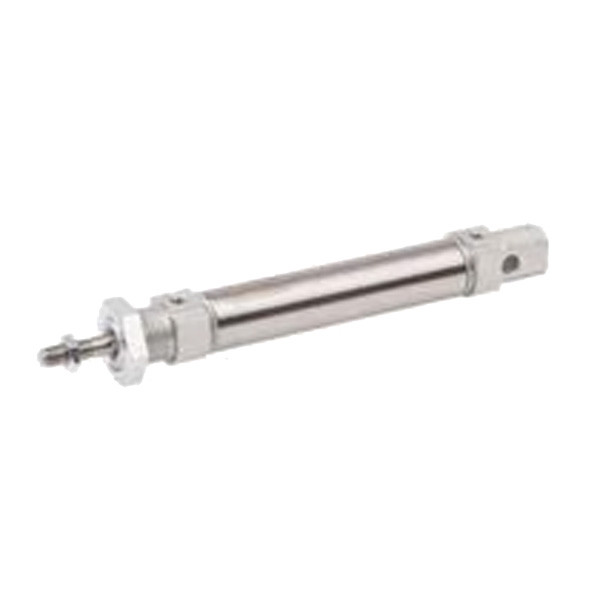

0822334510 Aventics Series MNI Mini Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series MNI Mini Cylinder, ISO 6432, 25 mm Piston Diameter, 320 mm Stroke, G 1/8 Ports, Double-Acting, Pneumatic Adjustable Cushioning, 17.5 mm Cushioning Length, 2.3 J Cushioning Energy, Piston with Magnet, Single Rod, M10x1.25 External Threaded Piston, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 260 N Retracting Piston Force, 309 N Extracting Piston Force, 1 to 10 bar Working Pressure, 0.265 kg Weight 0 mm Stroke, 0.013 kg Weight +10 mm Stroke, 1300 mm Stroke Max, 0.681 kg Weight.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: Series MNI
Product Type: Mini Cylinders
