Image may represent a range of products. Product may vary based on listed specifications.
Aventics

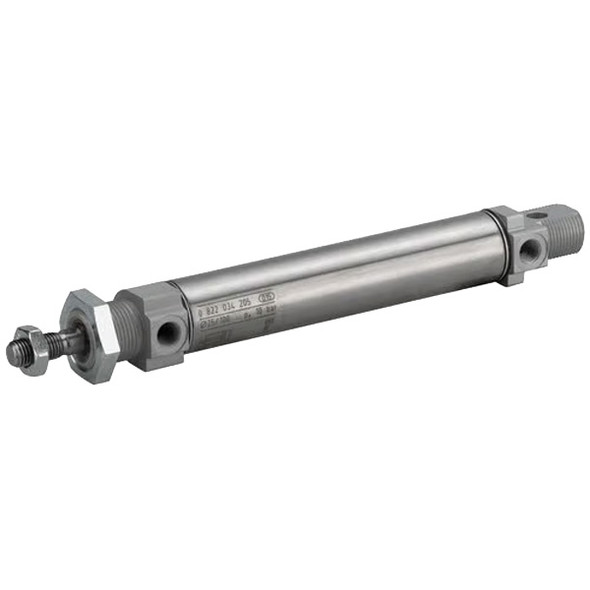

Aventics Series MNI Mini Cylinder, ISO 6432, 10 mm Piston Diameter, 10 mm Stroke, M5 Ports, Double-Acting, Elastic Cushioning, Piston without Magnet, Single Piston Rod, M4 External Threaded Piston, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 42 N Retracting Piston Force, 49 N Extracting Piston Force, 1 to 10 bar Working Pressure, 0.04 J Impact Energy, 0.034 kg Weight 0 mm Stroke, 0.0024 kg Weight +10 mm Stroke, 250 mm Stroke Max, 0.0364 kg Weight.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Actuators
- Product Family: Series MNI
- Product Type: Mini Cylinders
