Aventics

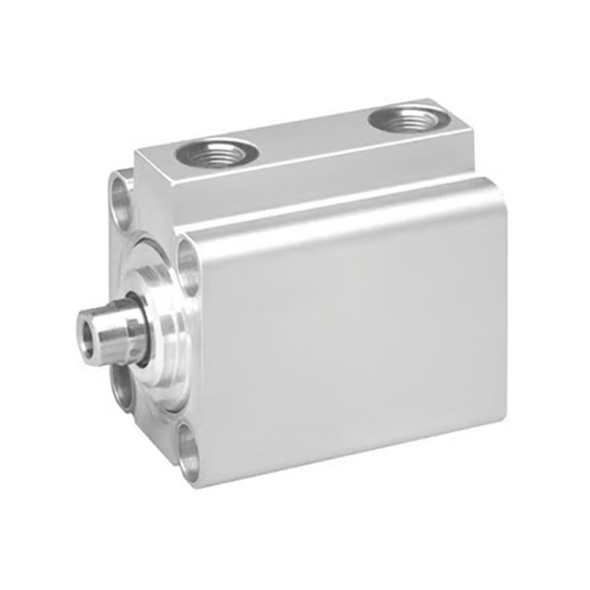

Aventics Series KHZ Short-Stroke Cylinder, 63 mm Piston Diameter, 25 mm Stroke, G 1/8 Ports, Double-Acting, Elastic Cushioning, Piston with Magnet, M8 External Threaded Piston, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 1837 N Retracting Piston Force, 1964 N Extracting Piston Force, 0.6 to 10 bar Working Pressure, 0.38 J Impact Energy, 0.636 kg Weight 0 mm Stroke, 0.096 kg Weight +10 mm Stroke, 50 Micron Max Particle Size, 0 mg/m^3 Min. Oil Content of Compressed Air.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series KHZ
- Product Type: Short-Stroke Cylinders
- Max. Ambient Temperature: 80 °C
- Max. Medium Temperature: 80 °C
- Micron Rating: 50 µm
- Min. Ambient Temperature: -25 °C
- Min. Medium Temperature: -25 °C
- Stroke: 25 mm
- Working Pressure: 0.6 to 10 bar
- Accessories for: Actuators
