Image may represent a range of products. Product may vary based on listed specifications.
Aventics

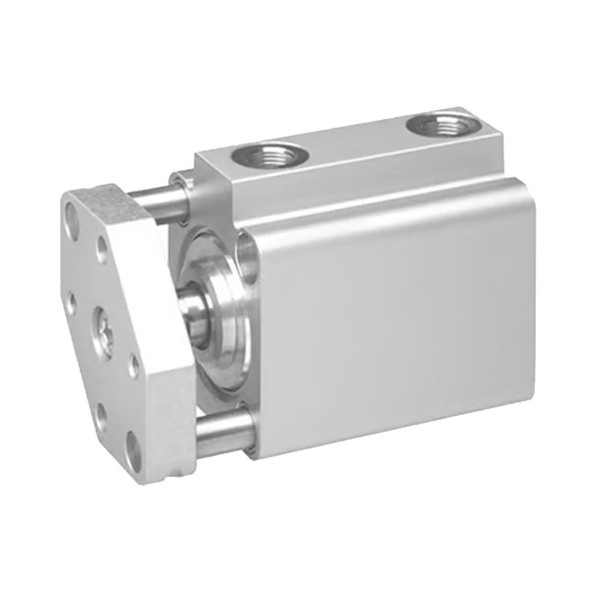

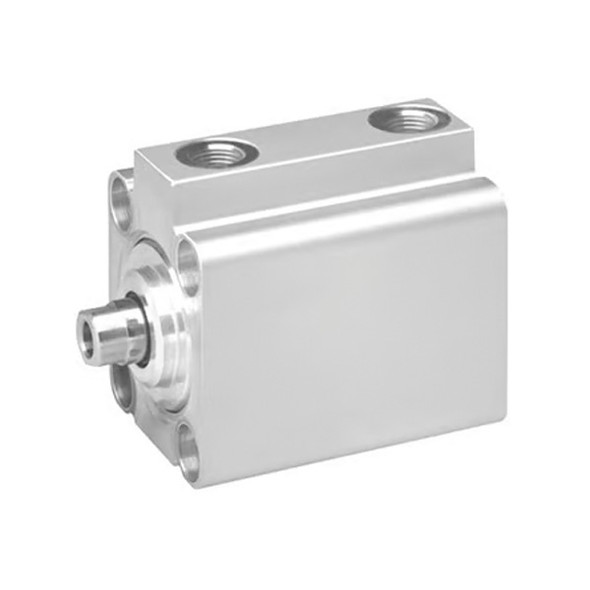

Aventics Series KHZ Short-Stroke Cylinder, 12 mm Piston Diameter, 4 mm Stroke, M5 Ports, Single-acting, Retraced without Pressure, Elastic Cushioning, Piston without Magnet, Internal Threaded Piston Rod, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 6.8 N Retracting Piston Force, 71 N Extracting Piston Force, 1.7 to 10 bar Working Pressure, 0 to 5 mg/m^3 Oil Content of Compressed Air, Stainless Steel Piston Rod, Nitrile Rubber Piston Material, 50 Micron Max. Particle Size.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series KHZ
- Product Type: Short-Stroke Cylinders
- Max. Ambient Temperature: 80 °C
- Max. Medium Temperature: 80 °C
- Micron Rating: 50 µm
- Min. Ambient Temperature: -25 °C
- Min. Medium Temperature: -25 °C
- Stroke: 4 mm
- Working Pressure: 1.7 to 10 bar
- Accessories for: Actuators
