Aventics

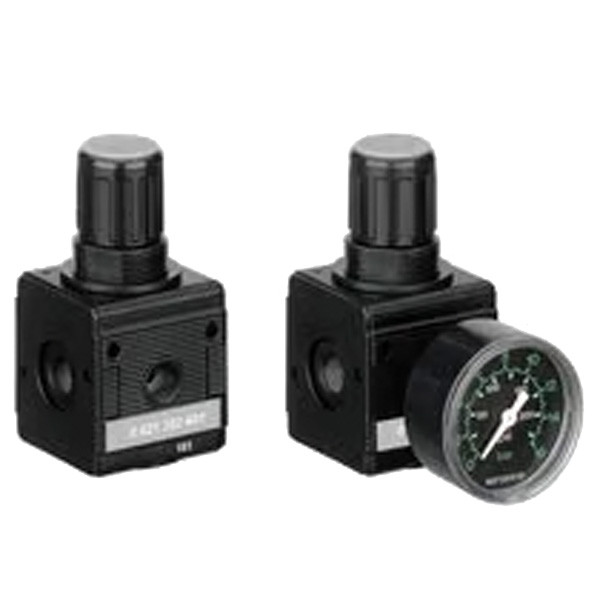

Aventics Series NL4-RGS Pressure Regulator, without Pressure Gauge, G 1/2 Port, Single Pressure Supply, 9500 l/min Nominal Flow, Diaphragm-Type Pressure Regulator, Mechanical Activation, Not Lockable, 0.5 to 10 bar Regulation Range, 0.5 to 16 bar Working Pressure, Any Mounting Orientation, -10 to 60 Deg C Ambient Temperature Range, 5 Micron Recommended Pre-Filtering, with Relieving Air Exhaust, Can be Assembled into Blocks, Die Cast Zinc Housing Material, Acrylonitrile Butadiene Rubber Seal Material, Acrylonitrile Butadiene Styrene Front Cover Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series NL4
- Product Type: Pressure Regulators
- Housing Material: Die Cast Zinc
- Max. Ambient Temperature: 60 °C
- Min. Ambient Temperature: -10 °C
- Nominal Flow Qn: 9500 l/min
- Seal Material: Acrylonitrile Butadiene Rubber
- Working Pressure: 0.5 to 16 bar
- Accessories for: Valves
