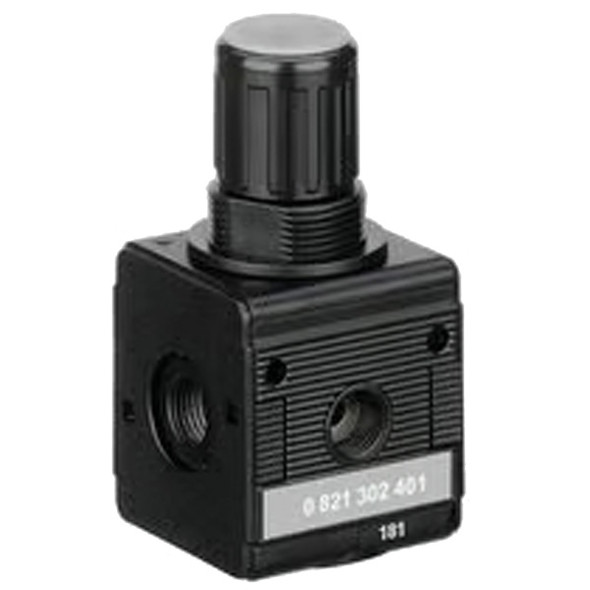

0821302401 Aventics Series NL2-RGS Pressure Regulator

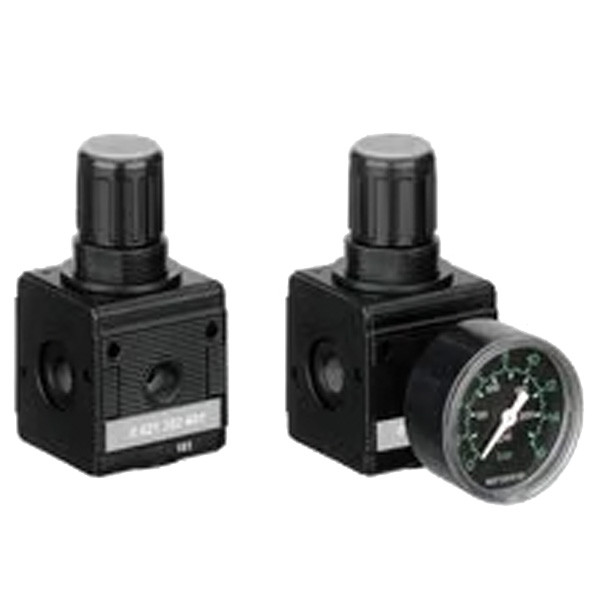

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series NL2-RGS Pressure Regulator, without Pressure Gauge, G 1/4 Port, Single Pressure Supply, 2000 l/min Nominal Flow, Diaphragm-Type Pressure Regulator, Mechanical Activation, Not Lockable, 0.5 to 10 bar Regulation Range, 0.5 to 16 bar Working Pressure, Any Mounting Orientation, -10 to 60 Deg C Ambient Temperature Range, 5 Micron Recommended Pre-Filtering, with Relieving Air Exhaust, Can be Assembled into Blocks, Die Cast Zinc Housing Material, Acrylonitrile Butadiene Rubber Seal Material, Acrylonitrile Butadiene Styrene Front Cover Material.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series NL2
Product Type: Pressure Regulators
Housing Material: Die Cast Zinc
Max. Ambient Temperature: 60 °C
Min. Ambient Temperature: -10 °C
Nominal Flow Qn: 2000 l/min
Seal Material: Acrylonitrile Butadiene Rubber
Working Pressure: 0.5 to 16 bar
