Image may represent a range of products. Product may vary based on listed specifications.
Aventics

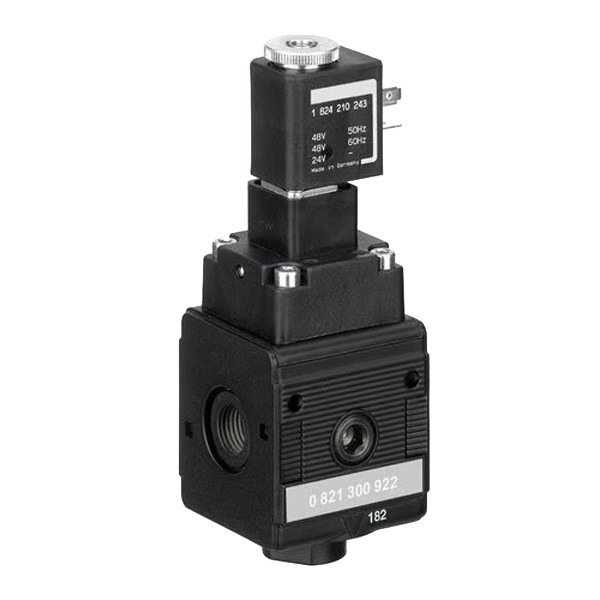

Aventics Series NL4-SOV 3/2-Directional Valve, Electrically Operated, Poppet Valve, Soft Seal, Pipe Connection, G 1/2 Compressed Air Connection / Exhaust, Nominal Flow 4000 l/min Qn 1 to 2, 1600 l/min Qn 2 to 3, 2.5 to 10 bar Working Pressure, ISO 6952 Connector Standard, IP65, Internal Pilot, -10 to 60 Deg C Ambient Temperature Range, 24 VDC Operational Voltage, Protected against Polarity Reversal, 4.8W Power Consumption, 100% Duty Cycle, 5 Micron Max Particle Size, Can be Assembled into Blocks.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series NL4
- Product Type: Directional Valves
- IP Rating: IP65
- Max. Ambient Temperature: 60 °C
- Micron Rating: 5 µm
- Min. Ambient Temperature: -10 °C
- Operational Voltage: 24 VDC
- Pilot: Internal
- Working Pressure: 2.5 to 10 bar
