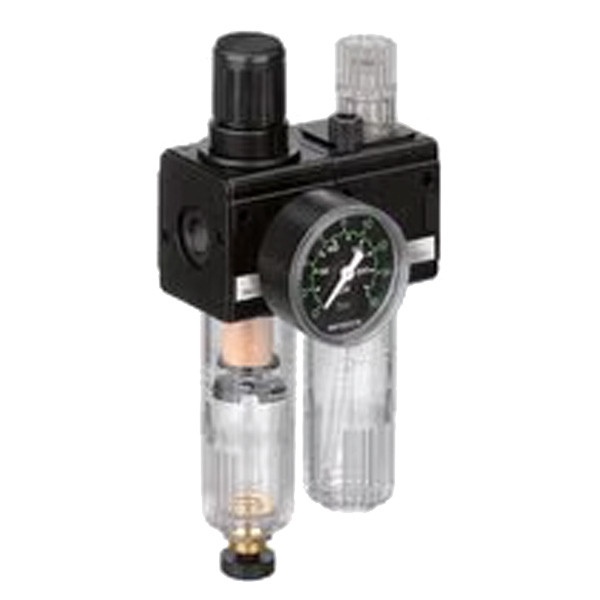

0821300401 Aventics Series NL2-ACD Air Preparation Unit

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series NL2-ACD Air Preparation Unit, Polycarbonate Reservoir, with Metal Protective Guard, Filter Pressure Regulator, Lubricator, G 1/4 Port, Single Pressure Supply, 1100 l/min Nominal Flow, 5 Micron Filter Porosity, Semi-Automatic Condensate Drain, Open without Pressure, with Pressure Gauge, 2 to 16 bar Working Pressure, 0.5 to 10 bar Regulation Range, 2-Part, -10 to 60 Deg C Ambient Temperature Range, Can be Assembled into Blocks, Vertical Mounting, Diaphragm-Type Pressure Regulator, with Relieving Air Exhaust, Exchangeable Filter Element, 50 cm^3 Lubricator Reservoir Volume, Manual Oil Filling.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series NL2
Product Type: Air Preparation Units
Max. Ambient Temperature: 60 °C
Micron Rating: 5 µm
Min. Ambient Temperature: -10 °C
Nominal Flow Qn: 1100 l/min
Working Pressure: 2 to 16 bar
