Image may represent a range of products. Product may vary based on listed specifications.
Aventics

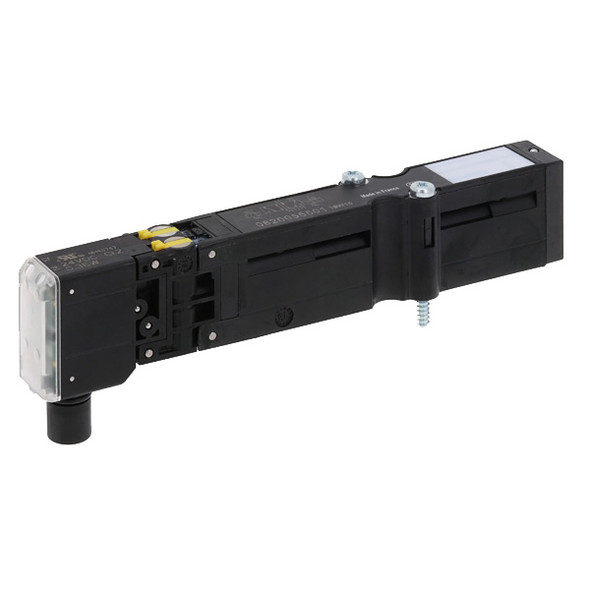

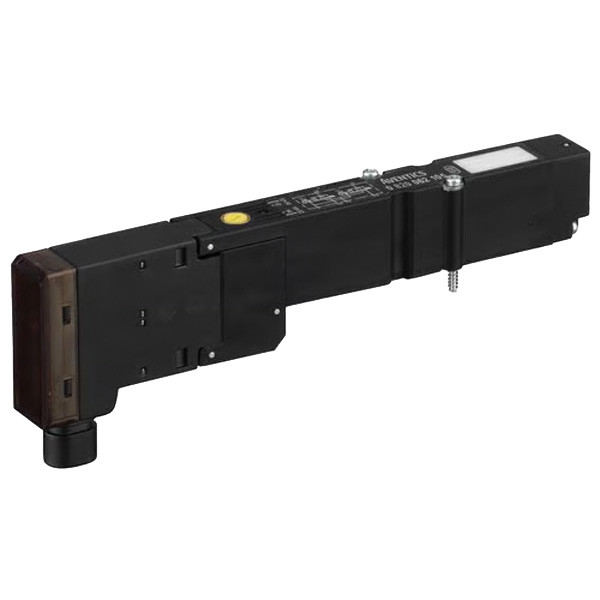

Aventics Series HF04 2x 3/2-Directional Valve, Electrical Activation, 2x 3/2 NC/NC, with Spring Return, Soft Seal, Manual Override with Detent, Yellow LED Status, 400 l/min Nominal Flow, -0.9 to 10 bar Working Pressure, IP65, External/Internal Pilot, -5 to 50 Deg C Ambient Temperature Range, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, Protected against Polarity Reversal, 0.55W Power Consumption, 10 mm Pilot Valve Width, 100% Duty Cycle, 13 ms Switch-on Time, 20 ms Switch-off Time, Polyamide Housing Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series HF04
- Product Type: 2x 3/2-Directional Valves
