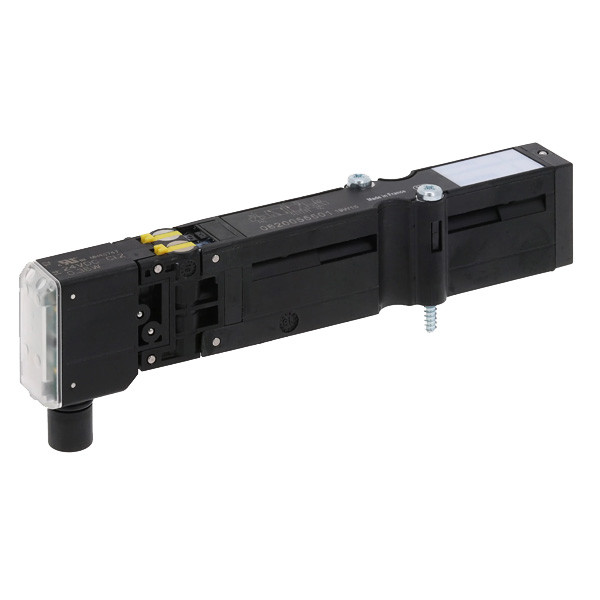

0820055101 Aventics Series HF03-LG 2x 3/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series HF03-LG 2x 3/2-Directional Valve, Electrical Activation, 2x 3/2 NC/NC, with Spring Return, Soft Seal, Manual Override with Detent, Yellow LED Status, 850 l/min Nominal Flow, -0.9 to 10 bar Working Pressure, IP65, External Pilot, 0 to 50 Deg C Ambient Temperature Range, 24 VDC Operational Voltage, -15% / +20% Voltage Tolerance, Protected against Polarity Reversal, 0.35W Power Consumption, 16 mm Pilot Valve Width, UR Cert. (Pilot Valve Only), 100% Duty Cycle, 20 ms Switch-on Time, 25 ms Switch-off Time, Polyamide Fiber-Glass Reinforced Housing Material.

  • Manufacturer: Aventics
  • Brand/Division: Numatics
  • Product Category: Valves
  • Product Family: Series HF03-LG
  • Product Type: 2x 3/2-Directional Valves
  • Housing Material: Polyamide Fiber-Glass Reinforced
  • IP Rating: IP65
  • Manual Override: With Detent
  • Max. Ambient Temperature: 50 °C
  • Min. Ambient Temperature: 0 °C
  • Nominal Flow Qn: 850 l/min
  • Operational Voltage: 24 VDC
  • Pilot: External
  • Typ. Switch-Off Time: 25 ms
  • Typ. Switch-On Time: 20 ms
  • Working Pressure: -0.9 to 10 bar

0820055101
