Aventics

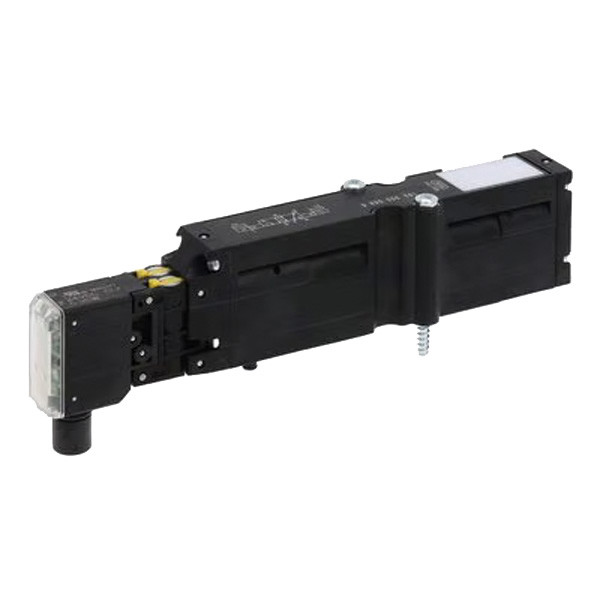

Aventics Series HF02-LG 5/3-Directional Valve, Electrical Activation, 5/3, Closed Center, Soft Seal, Manual Override with Detent, Yellow LED Status, 1400 l/min Nominal Flow, -0.9 to 10 bar Working Pressure, IP65, External/Internal Pilot, 0 to 50 Deg C Ambient Temperature Range, 24 VDC Operational Voltage, -15% / +20% Voltage Tolerance, Protected against Polarity Reversal, 0.35W Power Consumption, 16 mm Pilot Valve Width, UR Cert. (Pilot Valve Only), 100% Duty Cycle, 14 ms Switch-on Time, 15 ms Switch-off Time, Polyamide Housing Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series HF02
- Product Type: Directional Valves
- Housing Material: Polyamide
- IP Rating: IP65
- Manual Override: With Detent
- Max. Ambient Temperature: 50 °C
- Min. Ambient Temperature: 0 °C
- Nominal Flow Qn: 1400 l/min
- Operational Voltage: 24 VDC
- Pilot: Internal
- Typ. Switch-Off Time: 15 ms
- Typ. Switch-On Time: 14 ms
- Working Pressure: -0.9 to 10 bar
