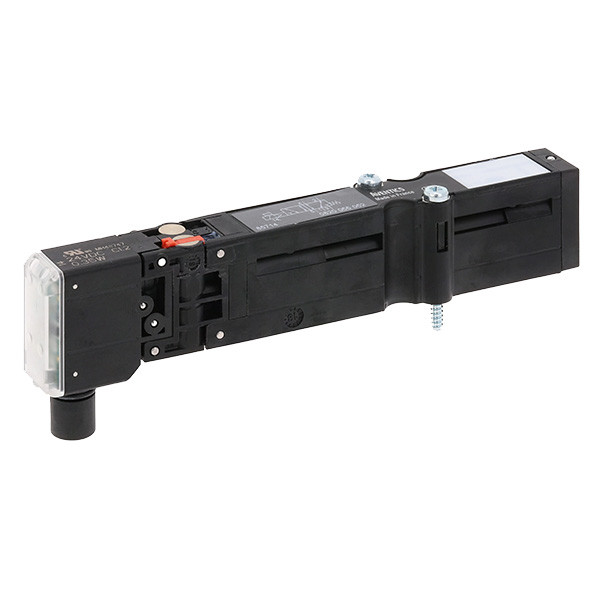

0820055052 Aventics Series HF03-LG 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series HF03-LG 5/2-Directional Valve, Double Solenoid, Electrical Activation, 5/2, with Spring Return, Soft Seal, without Detent, Yellow LED Status, 850 l/min Nominal Flow, -0.9 to 10 bar Working Pressure, IP65, External Pilot, 0 to 50 Deg C Ambient Temperature Range, 24 VDC Operational Voltage, -15% / +20% Voltage Tolerance, Protected against Polarity Reversal, 0.35W Power Consumption, 16 mm Pilot Valve Width, UR Cert. (Pilot Valve Only), 100% Duty Cycle, 16 ms Switch-on Time, 23 ms Switch-off Time, Polyamide Fiber-Glass Reinforced Housing Material.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series HF03-LG
Product Type: Directional Valves
