Protecting Trucks and Trailers at Loading Docks

Edwards Signaling 12th Dec 2022

Protecting Trucks and Trailers at Loading Docks

APPLICATION

Trucks and trailers can be secured with Sentrol’s MagnaPull at loading docks.

INSTALLATION

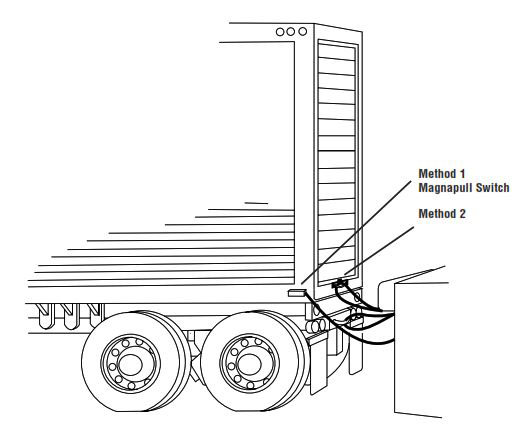

Extend a Sentrol 2105A or 2115A standard Magnapull unit from the perimeter loop on each loading dock. There are two different mount methods.

Method 1: A magnet block can be affixed to the trailer so that when the trailer is in the loading dock, the switch cord can be plugged in. In this case, an extra magnet block will be needed on the dock for storing the Interlogix switch cord when the loading dock is vacant.

Method 2: Run the switch cord through a permanently attached part on the trailer and then back to the dock and the magnet block.
