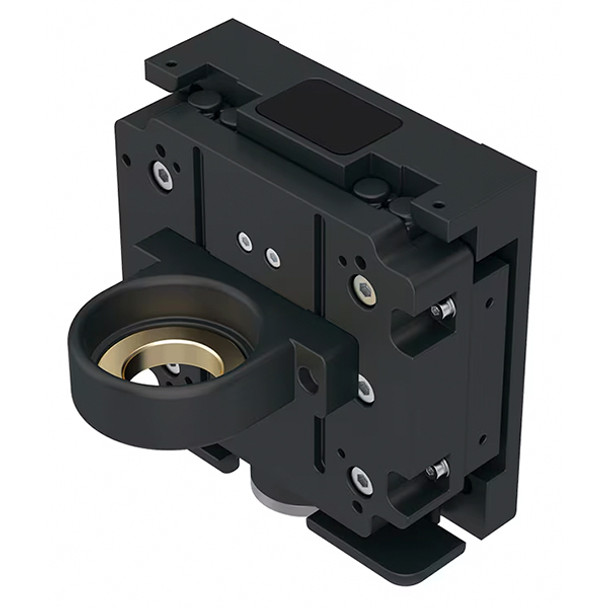

ZFA090-09-SC-V-P6-T6-0250 Parker Electromechanical ZFA Series Electric Linear Actuator for Z-focus axes

Image may represent a range of products. Product may vary based on listed specifications.

Parker Electromechanical ZFA Series Electric Linear Actuator, Voice Coil Drive Train, +/-250 nm Repeatability, 9 mm Stroke, 90 mm Frame Size, 2.25 kg Normal Load, 32 mm/s Peak Speed, 10 N Axial Force, SC - Sine/Cosine 1V p-p Encoder, V - Vertical Orientation, P6 - Vertical - Bracket Bottom / Objective Up Objective Bracket Position, T6 / P1-P3 - Vertical - RMS (0.800"-36 / UNS-2B) Objective Thread, 0250 Objective Mass.

Manufacturer: Parker Hannifin
Axial Force: 10 N
Brand/Division: Electromechanical
DOCS_Parker EMC Div. ZFA Series Actuator Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-emc-division-zfa-series-catalog.pdf
Drive Train: Voice Coil
Encoder: SC - Sine/Cosine 1V p-p
Frame Size: 90 mm
LINKS_Browse All Parker Hannifin Products: /manufacturers/parker
Normal Load: 2.25 kg
Objective Bracket Position: P6 - Vertical - Bracket Bottom / Objective Up
Objective Mass: 250
Objective Thread: T6 / P1-P3 - Vertical - RMS (0.800"-36 / UNS-2B)
Orientation: V - Vertical
Peak Speed: 32 mm/s
Product Category: Actuators
Product Family: ZFA Series
Product Type: Electric Linear Actuators
Repeatability: +/-250 nm
Stroke: 9 mm
DOCS_Parker EMC Div. ZFA Series Actuator Flyer: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-emc-division-zfa-series-flyer.pdf
DOCS_Parker EMC Div. ZFA Series Actuator Manual: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-emc-division-zfa-series-manual.pdf
LINKS_Browse All ZFA Series Products: /manufacturers/parker/zfa-series
