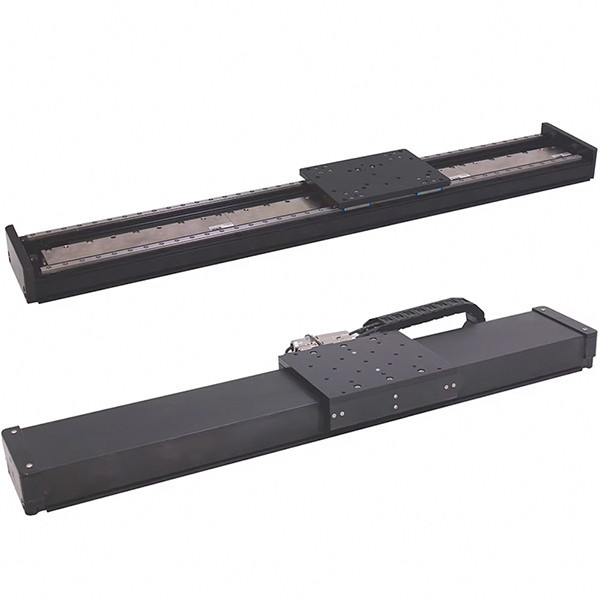

XLM125-P2UB-0160-E2S-C6K3 Parker Electromechanical XLM Series Linear Motor Actuator

Image may represent a range of products. Product may vary based on listed specifications.

Parker Electromechanical XLM Series Linear Motor Actuator, Rodless, Linear Motor, +/-0.5 um Repeatability, +/-0.1 um Accuracy, 160 mm Stroke, 125 mm Frame Size, 170 Kg Normal Load, 0.6 m/s Peak Speed, 98 N Axial Force, 0.1u optical incremental Encoder, Parallel, 2 pole length Winding, Uncovered w/ Carriage B Mount, Side carrier, wide, cable exit to right Carriage, Carriage-mounted connectors with 5m P-Drive extension cables (Not available with SC, R1, R2, R3 and R4 configurations), 125 mm wide profile.

Manufacturer: Parker Hannifin
Product Category: Actuators
Product Family: XLM Series
Product Type: Electric Linear Actuators
Accuracy: +/-0.1 micron
Axial Force: 98 N
Brand/Division: Electromechanical
Cable Length: 5 m
Carriage: Uncovered w/ Carriage B Mount
Carrier: Side carrier, wide, cable exit to right
Drive Train: Linear Motor
Form Factor: Rodless
Frame Size: 125 mm
LINKS_Browse All Parker Hannifin Products: /manufacturers/parker
LINKS_Browse All XLM Series Products: /manufacturers/parker/xlm-series
Normal Load: 170 kg
Peak Speed: 0.6 m/s
Repeatability: +/-0.5 micron
Stroke: 160 mm
Winding: Parallel, 2 pole length
DOCS_Parker XLM Linear Motor Stage Catalog: https://store-ca10qrhzok.mybigcommerce.com/content/documents/parker-xlm-linear-motor-stage-catalog.pdf
DOCS_Parker XLM Linear Motor Stage Datasheet: https://store-ca10qrhzok.mybigcommerce.com/content/documents/parker-xlm-linear-motor-stage-datasheet.pdf
