VES-HMRB15B3750-SV Parker Electromechanical HMR Series Electric Linear Actuators, 3750 mm, 100 mm/rev pulley & 3:1 gearbox, Servo

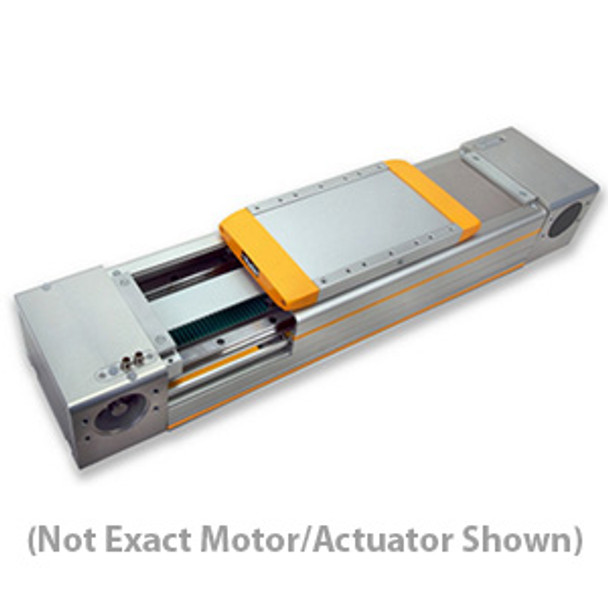

Image may represent a range of products. Product may vary based on listed specifications.
Parker Hannifin
Parker Electromechanical HMR Series Electric Linear Actuators, 3750 mm, 100 mm/rev pulley & 3:1 gearbox, Servo motor, ball bearing guide, Basic profile, no outer cover, 900kg normal load, +/- 50 micron repeatability, 5000 mm/s peak speed. Customizable and many options to select from: carriages, sensors, environmental ratings, motor direction, etc. Motor will limit the actuator's performance depending upon the application. Sizing calculations need to be performed to ensure performance.
- Manufacturer: Parker Hannifin
- Availability: Short (2-5 weeks)
- Axial Force: 1050 N
- Customizability: High
- Drive Train: Belt & Pulley
- Feed Constant: 100 mm/Rev Pulley
- Form Factor: Rodless
- Frame Size: 150 mm
- Motor: Servo
- Normal Load: 900 kg
- Peak Speed: 5000 mm/s
- Product Type: Electric Linear Actuators
- Repeatability: +/-50 micron
- Stroke: 3750 mm
- DOCS_Parker Belt Driven Positioners Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-belt-driven-positioners-catalog.pdf
- LINKS_Browse All HMR Series Products: /manufacturers/parker/hmr-series
- LINKS_Browse All Parker Hannifin Products: /manufacturers/parker
- Product Family: HMR Series
- Product Category: Actuators
- Brand/Division: Electromechanical
- CUSTOM_Special Order: TRUE
