VES-404700XEMVL-D3-SV Parker Electromechanical 404XE Series Electric Linear Actuators, 700mm, 10mm Ballscrew, Servo

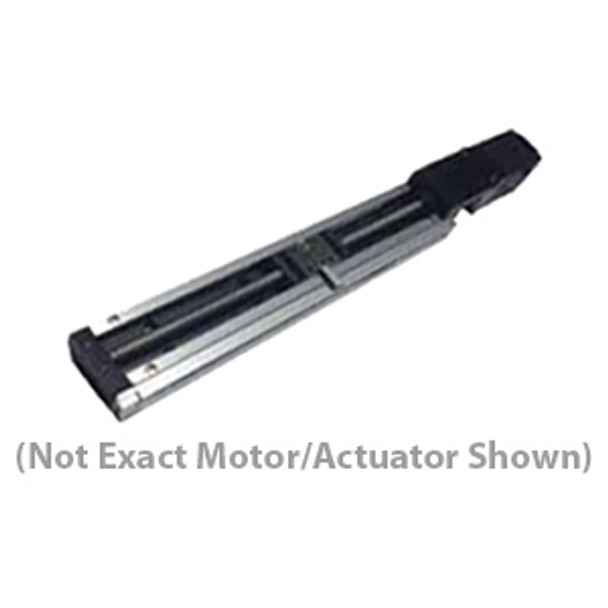

Image may represent a range of products. Product may vary based on listed specifications.

Parker Electromechanical 404XE Series Electric Linear Actuators, 700mm, 10mm Ballscrew, Servo motor, square rail guided, 122.6 kg normal load, +/-30 microns repeatability, 520mm/s peak speed. Customizable and many options to select from: sensors, brake, environmental, encoder, etc. Motor may limit the actuator's performance depending upon the application. Sizing calculations need to be performed to ensure performance.

  • Manufacturer: Parker Hannifin
  • Accuracy: 154 micron
  • Availability: Short (2-5 weeks)
  • Axial Force: 686 N
  • Customizability: High
  • Drive Train: Ball Screw
  • Feed Constant: 10 mm Ball Screw
  • Form Factor: Rodless
  • Frame Size: 95 mm
  • Motor: Servo
  • Normal Load: 122 kg
  • Peak Speed: 520 mm/s
  • Product Family: XE Series
  • Product Type: Electric Linear Actuators
  • Repeatability: +/-30 micron
  • Stroke: 700 mm
  • DOCS_Parker Virtual Engineer Brochure: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-virtual-engineer-brochure-2018.pdf
  • DOCS_Parker 404XE Series Product Manual: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-404xe-series-linear-positioners-manual.pdf
  • DOCS_Parker XE Series Positioners Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-xe-series-positioners-catalog-2017.pdf
  • Product Category: Actuators
  • Brand/Division: Electromechanical
  • CUSTOM_Special Order: TRUE

VES-404700XEMVL-D3-SV
