VES-404200XRMP-D3-SV Parker Electromechanical 404XR Series Electric Linear Actuators, 200mm, 10mm Ballscrew, Servo

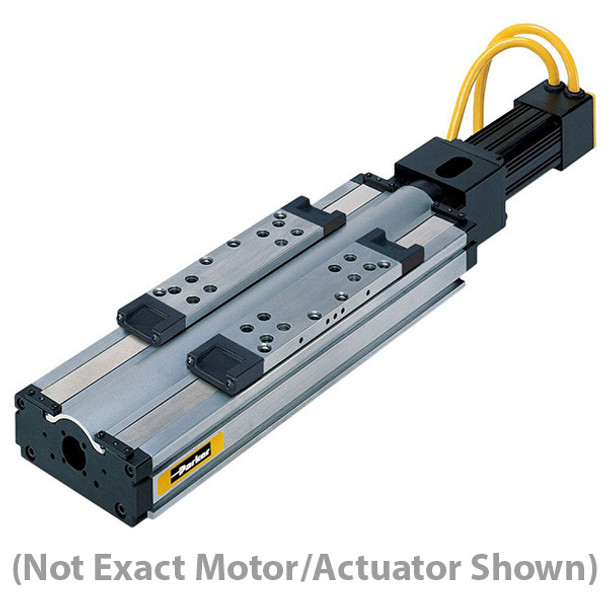

Image may represent a range of products. Product may vary based on listed specifications.

Parker Electromechanical 404XR Series Electric Linear Actuators, 200mm, 10mm Ballscrew, Servo motor, square rail guided, 170 kgs normal load, +/-1.3 microns repeatability, 600mm/s peak speed. Customizable and many options to select from: sensors, brake, environmental, encoder, etc. Motor will limit the actuator's performance depending upon the application. Sizing calculations need to be performed to ensure performance.

  • Manufacturer: Parker Hannifin
  • DOCS_Parker Screw-Driven Positioners and Actuators Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-screw-driven-positioners-and-actuators-catalog.pdf
  • DOCS_Parker 404/406XR Series Linear Positioners Manual: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-404-406xr-series-linear-positioners-manual-2018.pdf
  • Accuracy: 12 micron
  • Availability: Short (2-5 weeks)
  • Axial Force: 880 N
  • Customizability: High
  • Drive Train: Ball Screw
  • Feed Constant: 10 mm Ball Screw
  • Form Factor: Rodless
  • Frame Size: 95 mm
  • Motor: Servo
  • Normal Load: 170 kg
  • Peak Speed: 600 mm/s
  • Product Family: XR Series
  • Product Type: Electric Linear Actuators
  • Repeatability: +/-1.3 micron
  • Stroke: 200 mm
  • Product Category: Actuators
  • Brand/Division: Electromechanical
  • CUSTOM_Special Order: TRUE

VES-404200XRMP-D3-SV
