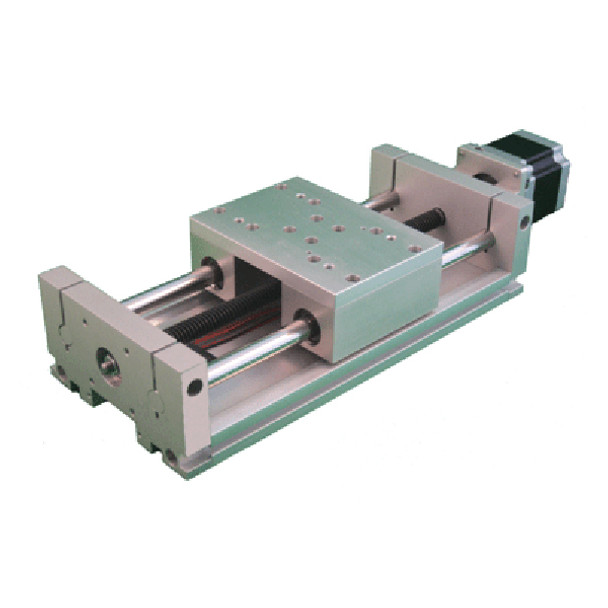

UST8050B-18-N1 USAutomation Twintrac Series Electric Linear Actuators, 18 in., 0.5 in. Ball Screw, No Motor, EOT and home Limits.

Image may represent a range of products. Product may vary based on listed specifications.

USAutomation Twintrac Series Electric Linear Actuators, 18 in., 0.5 in. Ball Screw, No EOT and Home Limits. Square Rail Guided, 200 lb. Normal Load, 10 in/sec Peak Speed. Customizable and many options to select from.

  • Manufacturer: USAutomation
  • Accuracy: 274 micron
  • Availability: Short (2-5 weeks)
  • Customizability: Medium
  • Drive Train: Ball Screw
  • Feed Constant: 0.5 in. Ball Screw
  • Form Factor: Rodless
  • Frame Size: 127 mm
  • Motor: None
  • Normal Load: 90 kg
  • Peak Speed: 255 mm/s
  • Product Family: Twintrac Series
  • Stroke: 457 mm
  • DOCS_USAutomation Twintrac Series UST Series User's Manual: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/usautomation-twintrac-series-ust-users-manual.pdf
  • DOCS_USAutomation Product Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/usautomation-product-catalog.pdf
  • Product Category: Actuators
  • Product Type: Electric Linear Actuators

UST8050B-18-N1
