Image may represent a range of products. Product may vary based on listed specifications.
Fairchild Products

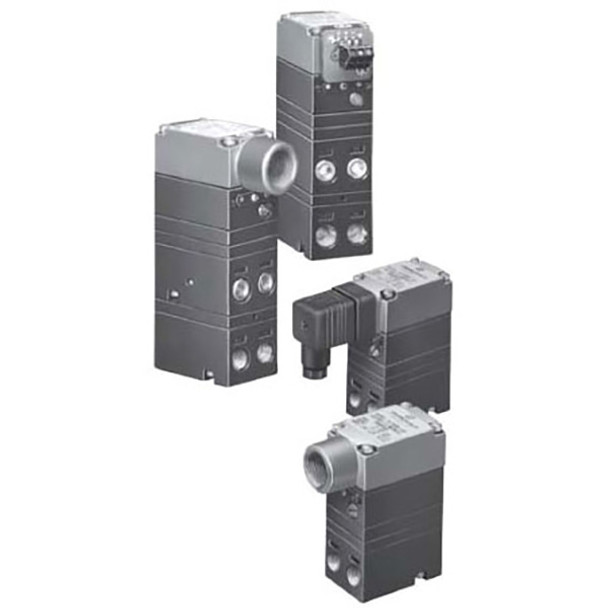

Rotork Fairchild Products Model T7800 Electro-Pneumatic Transducer, 1/4" FPT, 7.2 to 30 VDC, 4 to 20 mA Input, 0 to 120 PSIG Output, 11 SCFM, DIN 43650 Connection, Reversible, CSA Approved, Intrinsically Safe, Extended Range, Current to Pressure, Electro-Pneumatic Transducer.
- Manufacturer: Fairchild Products
- DOCS_Rotork Fairchild Transducer Product Specifications Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-transducer-product-specifications-2.pdf
- Accuracy: 0.25% Full Scale Guaranteed, 0.15% Full Scale Typical
- Action Type: Reversible
- Air Connection: (2) 1/4 in. Female Threaded (Inlet/Outlet)
- Air Flow Rate: 11 SCFM at 150 psig
- Applicable Standard: Class I Div 1 Group C/D
- Applicable Standard: Class I Div 2 Group A/B/C/D
- Applicable Standard: Class II Div 1 Group E/F/G
- Applicable Standard: CSA
- Application: Indoor/Outdoor
- Body Material: Epoxy-Powder Coated Chromate-Treated Aluminum
- Electrical Connection: DIN 43650
- Input Signal: 4 to 20 mA
- Product Family: Model T7800
- Product Type: Electro-Pneumatic Transducers
- Temperature Rating: -40 to 160 °F
- Used On Model/Brand: DIN 43650
- Voltage Rating: 7.2 to 30 VDC
- LINKS_Browse All Fairchild Products Products: /manufacturers/fairchild-industrial-products
- LINKS_Browse All Model T7800 Products: /manufacturers/fairchild-industrial-products/model-t7800
- Output: 0 to 120 psig
- Product Category: Transducers
