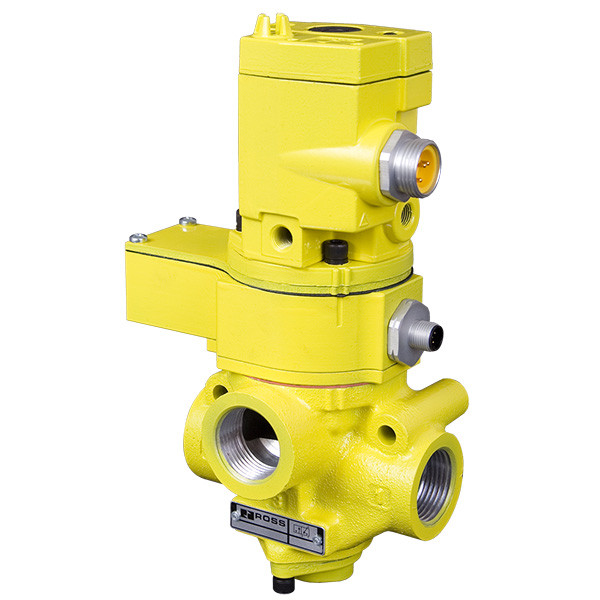

SV27DC307807PSAA1D Ross Controls SV27 Series 3/2 Solenoid Sensing Valve

Image may represent a range of products. Product may vary based on listed specifications.

Ross Controls SV27 Series 3/2 Solenoid Sensing Valve, Poppet Construction, External Monitoring, DPST Switch, 24 VDC, G 1-1/4 Inlet Size x G 1-1/2 Outlet Size, 1-1/2 in. Exhaust Size, 3-Pin Mini Solenoid Connection, 5-Pin M12 Feedback Connection, 150 psig Operating Pressure, Inline Mounting, 40 to 175 Deg F Media Temperature Range, Flow Media: Filtered Air, Cast Aluminum Valve Body, Acetal & Stainless Steel Poppet/Spool Material, Buna-N Seal, CSA/UL, EAC, CE, DGUV, SIL3, PL e, Category 4.

Manufacturer: Ross Controls
LINKS_Browse All Ross Controls Products: /manufacturers/ross-controls
Product Category: Valves
Product Family: SV27 Series
Product Type: Solenoid Valves
Mounting Type: Inline Mounting
Seal Material: Buna-N
Valve Body Material: Cast Aluminum
Voltage: 24 VDC
